DEM 800480G1 TMH-PW-N A-T

Display Elektronik TFT graphic modules

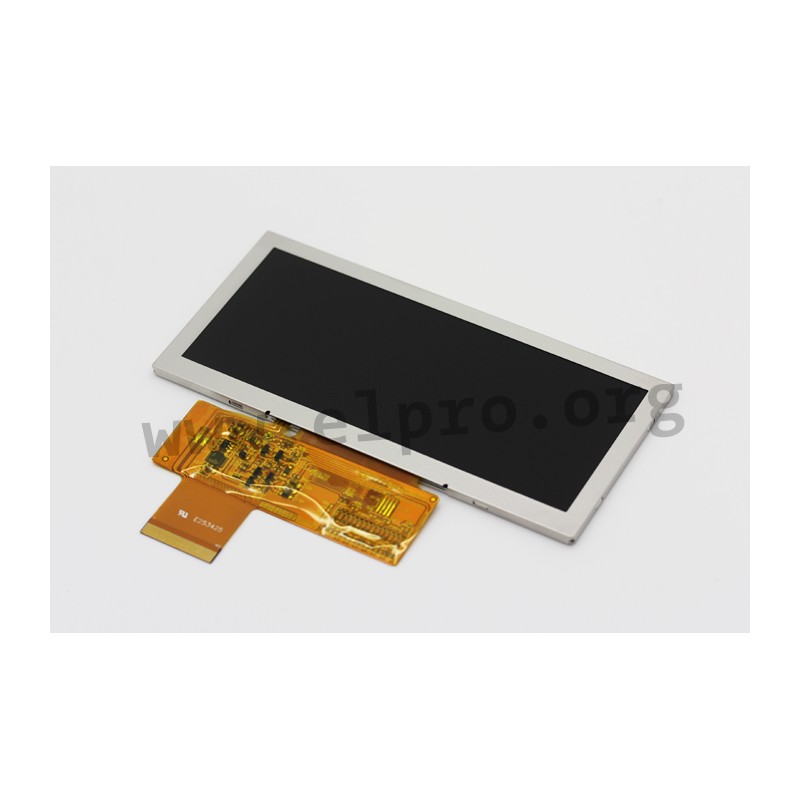

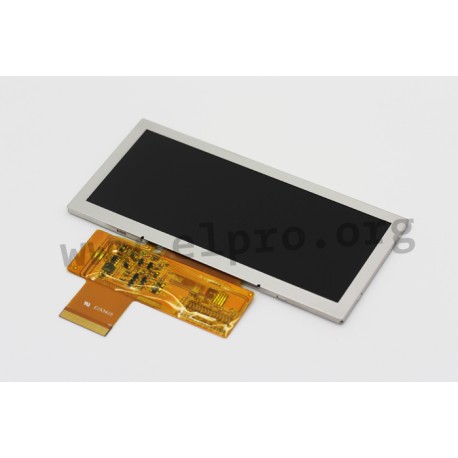

TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.


DEM 800480G1 TMH-PW-N A-T DEM800480G1TMH-PW-N(A-TOUCH)

DEM 800480G1 TMH-PW-N A-T

111256 DEM 800480G1 TMH-PW-N A-T DEM800480G1TMH-PW-N(A-TOUCH) DEM800480G1TMH-PW-N(A-TOUCH) Display Elektronik TFT graphic modules. TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name DEM800480G1T...
Pixel size [mm] 0,1926x0,1926
Background white
Field of view [mm] 154,1x85,9
Dimensions [mm] 165x100x25,1
Diagonal ["] 7
Data Sheet

Unit price

69,19 €

Stock: 2
