DEM 800480U TMH-PW-N A-T

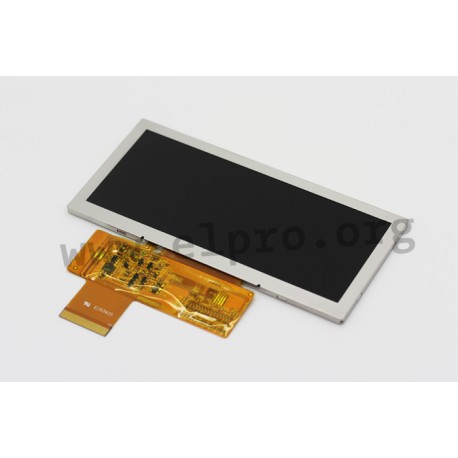

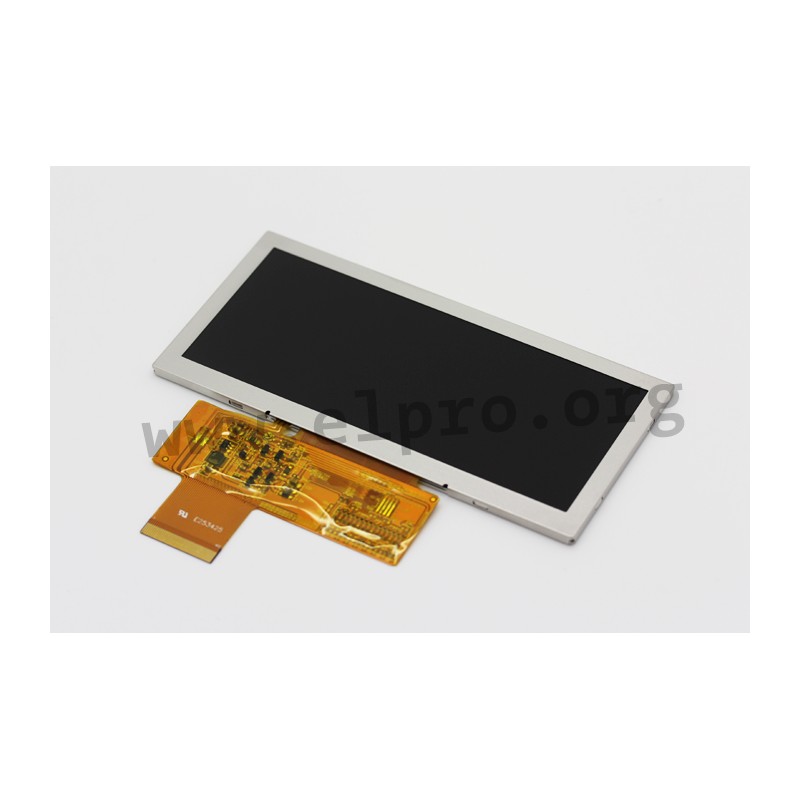

Display Elektronik TFT graphic modules

TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.


DEM 800480U TMH-PW-N A-T DEM800480UTMH-PW-N(A-TOUCH)

DEM 800480U TMH-PW-N A-T

111258 DEM 800480U TMH-PW-N A-T DEM800480UTMH-PW-N(A-TOUCH) DEM800480UTMH-PW-N(A-TOUCH) Display Elektronik TFT graphic modules. TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.

Specifications

manufacturer
Manufacturer's name DEM800480UTM...
Pixel size [mm] 0,135x0,135
Background white
Field of view [mm] 108x64,8
Dimensions [mm] 120,7x75,8x23
Diagonal ["] 5
Data Sheet

Unit price

94,09 €

Stock: 2
Further delivery:
CW 21/2024
