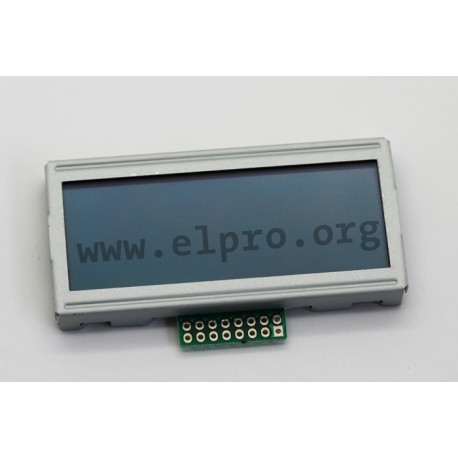

EA T120A-54LED

Display Visions LCD graphic modules

The STN LCD displays from Display Visions are available in a format of 120x32 and offer a monochrome graphic display. The connection to an 8-bit data bus enables fast data transmission. The supply voltage is 5 volts. The operating temperature range is from -20 to +70°C. The displays are optionally available with a touch panel. The version with the suffix TP has a touch panel, while the version with the suffix TK additionally offers a snap-in housing or a panel and programmable macros.

EAT120A-54LED, Electronic Assembly LCD displays, STN, 120x32

EA T120A-54LED

107065 EA T120A-54LED EAT120A-54LED EAT120A-54LED Display Visions LCD graphic modules. The STN LCD displays from Display Visions are available in a format of 120x32 and offer a monochrome graphic display. The connection to an 8-bit data bus enables fast data transmission. The supply voltage is 5 volts. The operating temperature range is from -20 to +70°C. The displays are optionally available with a touch panel. The version with the suffix TP has a touch panel, while the version with the suffix TK additionally offers a snap-in housing or a panel and programmable macros.

Specifications

manufacturer
Manufacturer's name EAT120A-54LED
Pixel size [mm] 0,44x0,62
Background green/yellow
Illumination yellow
Field of view [mm] 62x22,4
Dimensions [mm] 68,3x33,2x7,7
Data Sheet

Unit price

56,39 €

Stock: 14
Further delivery:
CW 21/2024
