ESD112EC34Z

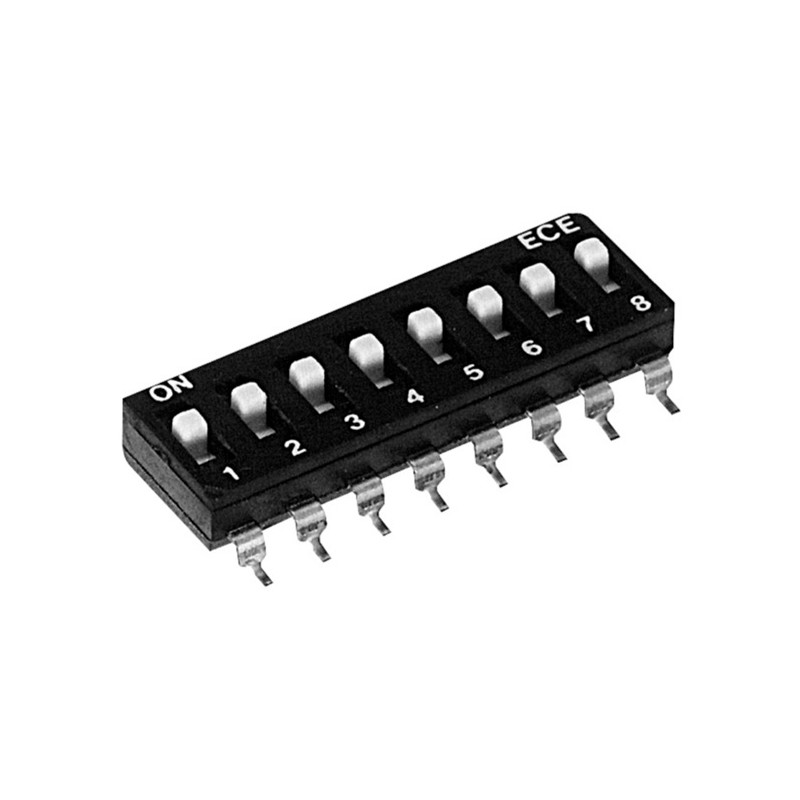

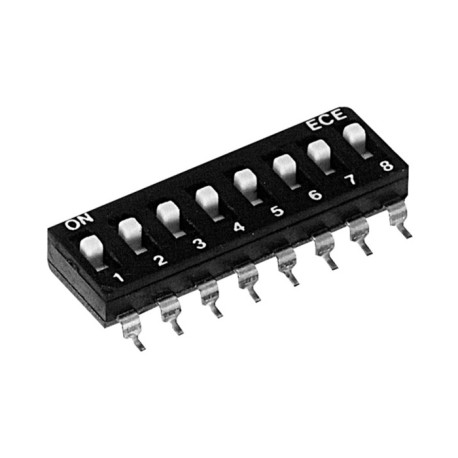

code switch, SMD version

* pitch: 2.54mm
* can be assembled by any automatic IC inserter
* switching capacity: 25mA/24V DC
* contact resistance, max. new state: 50mΩ
* contact resistance, max. after operating life test: 100mΩ
* dielectric strength, min.: 500V DC/1min.
* capacity of adjacent switch, max.: 5pF

SD_/ESD_
* type: SMD IC
* SD_(ESD_EZ): extended actuator
* SD_, ESD_LDZ: low profile actuator
* bottom epoxy sealed against flux immersion
* transmission current: 100mA/50V DC
* insulation resistance (100V DC), min.: 1000MΩ
* spacing between rows: 11.2mm
* insulation shell: UL94V-0, black
* contact finish: gold over nickel
* operating temperature: -25...+70°C
* operating force, max.: 800g
* switching capacity: 2000 operations
* air humidity: 95% RH, 40°C/96h
* vibration test: MIL-STD-202F, method 204D
* by ECE

DX236_
* type: vertical
* isolation resistance (500V DC), min.: 1000MΩ
* temperture range: -40...+85°C
* operating force, max.: 1000gf
* operating life/cycles mechanical: 3.000
* operating life/cycles electrical: 2.000
* by Greatecs



ESD112EC34Z, ECE DIL switches, SMD, pitch 2,54mm, SD and ESD series

ESD112EC34Z

251081 ESD112EC34Z ESD112EC34Z code switch, SMD version. * pitch: 2.54mm* can be assembled by any automatic IC inserter* switching capacity: 25mA/24V DC* contact resistance, max. new state: 50mΩ* contact resistance, max. after operating life test: 100mΩ* dielectric strength, min.: 500V DC/1min.* capacity of adjacent switch, max.: 5pFSD_/ESD_* type: SMD IC* SD_(ESD_EZ): extended actuator* SD_, ESD_LDZ: low profile actuator* bottom epoxy sealed against flux immersion* transmission current: 100mA/50V DC* insulation resistance (100V DC), min.: 1000MΩ* spacing between rows: 11.2mm* insulation shell: UL94V-0, black* contact finish: gold over nickel* operating temperature: -25...+70°C* operating force, max.: 800g* switching capacity: 2000 operations* air humidity: 95% RH, 40°C/96h* vibration test: MIL-STD-202F, method 204D* by ECEDX236_* type: vertical* isolation resistance (500V DC), min.: 1000MΩ* temperture range: -40...+85°C* operating force, max.: 1000gf* operating life/cycles mechanical: 3.000* operating life/cycles electrical: 2.000* by Greatecs

Specifications

manufacturer
Manufacturer's name ESD112EC34Z
Switch 12
A [mm] 2,54
Data Sheet

Unit price

2,09 €

Stock: 0
Further delivery:
CW 16/2026

Minimum order quantity 1.000 units or
multiples of 1.000.
