EA1005DHES901

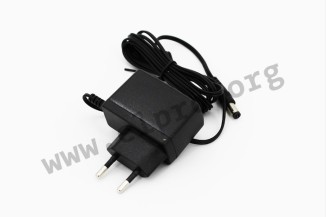

EDACPOWER plug-in power supply series EA1005

Plug-in switching power supplies with 6W, a europlug, protection class II and energy efficiency Level VI. These devices are protected against short circuit, overload (auto recovery) and overvoltage. They are suitable for indoor applications and comply with UL/EN62368 as well as EN55032. We offer the following types of this EDACPOWER series: EA1005AHES501, EA1005AHEU5, EA1005AHES(T05) USB, EA1005DHES901 and EA1005BHES1201.

  • single output
  • output: 6W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • input plug: Euro
  • operating temperature: 0 to +40°C
  • weight: 70g

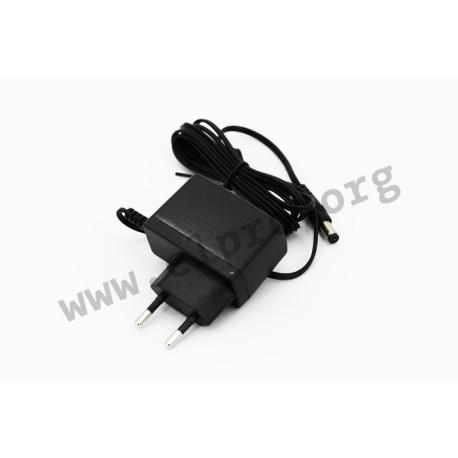

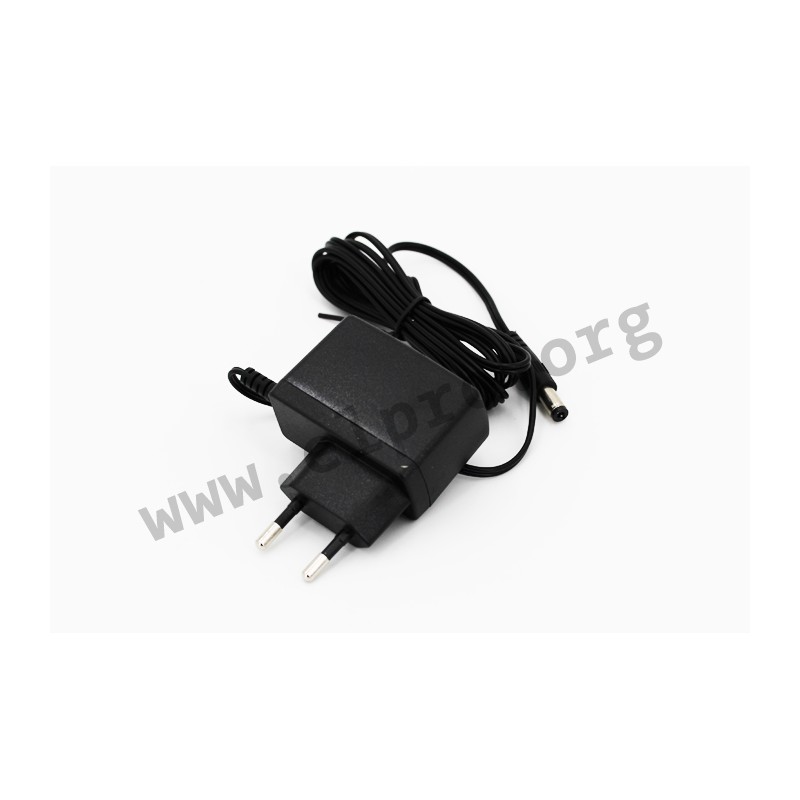

EA1005DHES901 EA1005DHES(T01)

EA1005DHES901

241041 EA1005DHES901 EA1005DHES(T01) EA1005DHES(T01) EDACPOWER plug-in power supply series EA1005. Plug-in switching power supplies with 6W, a europlug, protection class II and energy efficiency Level VI. These devices are protected against short circuit, overload (auto recovery) and overvoltage. They are suitable for indoor applications and comply with UL/EN62368 as well as EN55032. We offer the following types of this EDACPOWER series: EA1005AHES501, EA1005AHEU5, EA1005AHES(T05) USB, EA1005DHES901 and EA1005BHES1201. single output output: 6W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 60A input plug: Euro operating temperature: 0 to +40°C weight: 70g

Specifications

manufacturer
Manufacturer's name EA1005DHES(T01)
Output voltage [V] 9
Plug 1 Euro
Plug 2 Coaxial 2,1x5,5mm
Output current [A] 0,67
Output voltage tolerance: [%] +5/-5
Output power [W] 6
Ripple [mVp-p] 180
Data Sheet

Unit price

6,09 €

Stock: 436
Further delivery:
CW 34/2024
