EA1019HHES1201

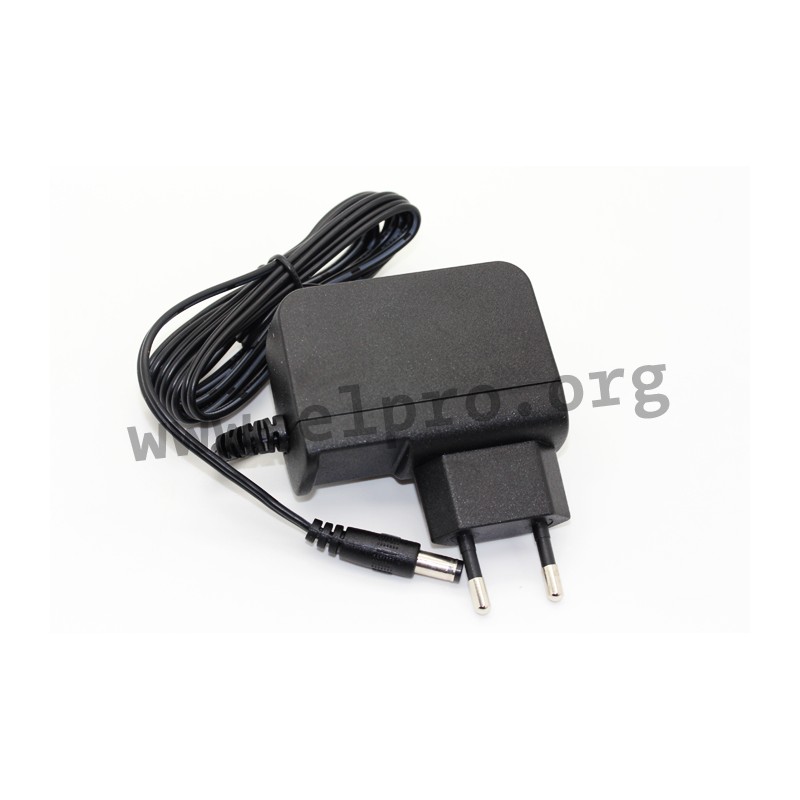

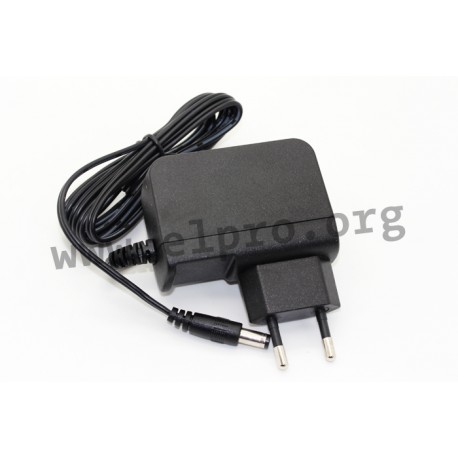

EDACPOWER plug-in power supply series EA1019

Plug-in switching power supplies with 24W, a europlug, a universal input and class II protection. These devices are suitable for indoor applications and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with UL/EN62368-1, EN55032 class B and energy efficiency Level VI (DoE). We offer the following types of this EDACPOWER series: EA1019AHES592, EA1019BHES901, EA1019HHES1201 and EA1019KHES2401.

  • single output
  • output: 15 to 24W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • cable length: 1,8m
  • input plug: euro
  • output plug: 2,1x5,5mm coaxial
  • output plug EA1019AHES592: USB-C
  • dimensions: 55x25x55mm
  • operating temperature: 0 to +40°C
  • weight: 70g

EA1019HHES1201

233986 EA1019HHES1201 EA1019HHES(T01) EA1019HHES(T01) EDACPOWER plug-in power supply series EA1019. Plug-in switching power supplies with 24W, a europlug, a universal input and class II protection. These devices are suitable for indoor applications and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with UL/EN62368-1, EN55032 class B and energy efficiency Level VI (DoE). We offer the following types of this EDACPOWER series: EA1019AHES592, EA1019BHES901, EA1019HHES1201 and EA1019KHES2401. single output output: 15 to 24W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A cable length: 1,8m input plug: euro output plug: 2,1x5,5mm coaxial output plug EA1019AHES592: USB-C dimensions: 55x25x55mm operating temperature: 0 to +40°C weight: 70g

Specifications

manufacturer
Manufacturer's name EA1019HHES(T01)
Output voltage [V] 12
Efficiency [%] 86,804
Output current [A] 2
Output voltage tolerance: [%] +5/-5
Output power [W] 24
Ripple [mVp-p] 180
Data Sheet

Unit price

8,79 €

Stock: 272
Next incoming goods:
CW 15/2024
1120 units


Further delivery:
CW 32/2024
