EA11301J1246

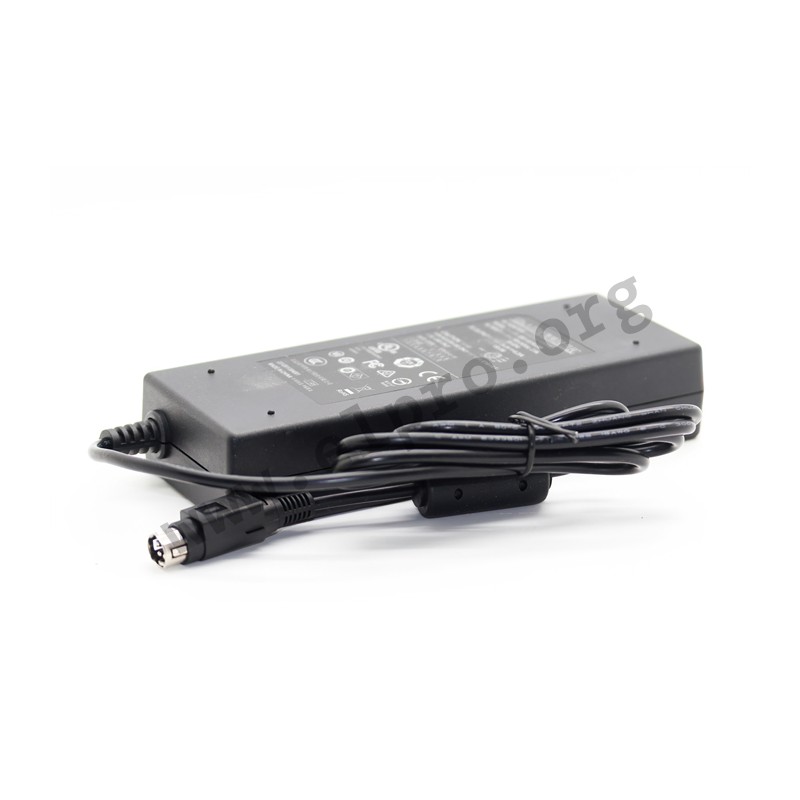

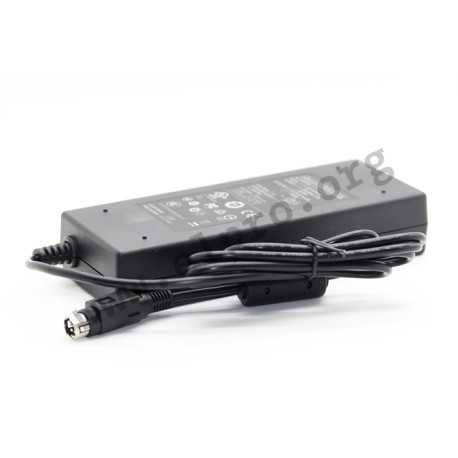

EDACPOWER desktop power supply series EA1130

Desktop switching power supplies with a universal input and 150W. These devices are suitable for indoor applications and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with EN62368-1, EN55032 class B and energy efficiency Level VI (DoE). We offer the following types of this EDACPOWER series: EA11301J1246 and EA11301K2446.

  • single output
  • output: 150W
  • input voltage: 100 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 120A
  • cable length: 1,2m
  • input plug: C8
  • output plug: DIN plug, 4-pole
  • dimensions: 160x64x30mm
  • operating temperature: 0 to +40°C
  • weight: 605g

EA11301J1246

233996 EA11301J1246 EA11301J(T05) EA11301J(T05) EDACPOWER desktop power supply series EA1130. Desktop switching power supplies with a universal input and 150W. These devices are suitable for indoor applications and are protected against short circuit, overload (auto recovery) as well as overvoltage. They comply with EN62368-1, EN55032 class B and energy efficiency Level VI (DoE). We offer the following types of this EDACPOWER series: EA11301J1246 and EA11301K2446. single output output: 150W input voltage: 100 to 264V AC (47 to 63Hz) maximal input inrush current: 120A cable length: 1,2m input plug: C8 output plug: DIN plug, 4-pole dimensions: 160x64x30mm operating temperature: 0 to +40°C weight: 605g

Specifications

manufacturer
Manufacturer's name EA11301J(T05)
Output voltage [V] 12
Efficiency [%] 89
Output current [A] 12,5
Output voltage tolerance: [%] +5/-5
Output power [W] 150
Ripple [mVp-p] 240
Data Sheet

Unit price

39,39 €

Stock: 702
Further delivery:
CW 32/2024
