S 20 K 300

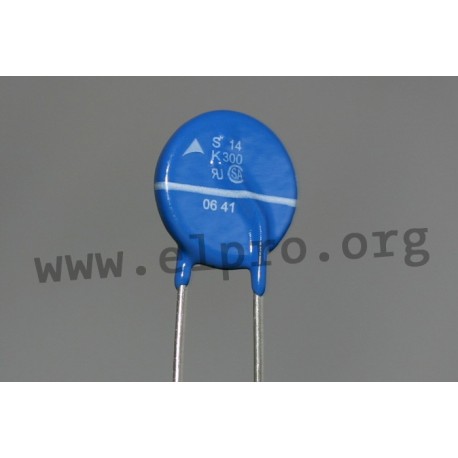

Epcos metal oxide varistor series SIOV

  • wired and round varistor elements
  • with an epoxy resin coating (UL94V-0)
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
B72220S0301K101, TDK metal oxide varistors, pitch 5mm/7,5mm, SIOV series

S 20 K 300

130750 S 20 K 300 B72220S0301K101 B72220S0301K101 Epcos metal oxide varistor series SIOV. wired and round varistor elements with an epoxy resin coating (UL94V-0) operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name B72220S0301K101
Current [A] 8000
(Max.) RMS voltage [V] 300
Operating voltage [V] 385
Varistor voltage at 1mA [V] 470
Tolerance of varistor voltage [%] 10
Capacity [pF] 780
Data Sheet

Unit price

0,255 €

Stock: 775
Further delivery:
CW 37/2024

Minimum order quantity 25 units or
multiples of 25.
