343.435-58V

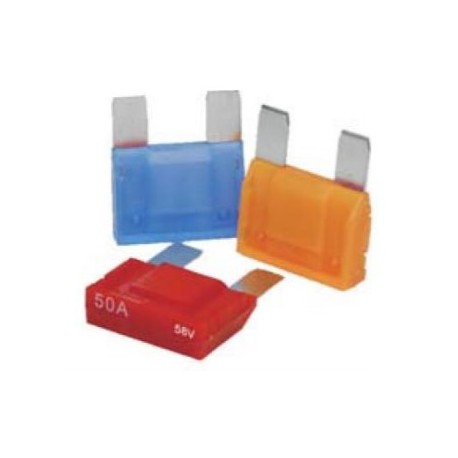

ESKA automotive fuse series 343.400-58V Maxi

  • automotive blade type fuses in an insulating plastic housing
  • suitable for applications in the automotive industry
  • with zinc alloy contacts
  • breaking capacity: 1000A
  • rated current: 20 to 100A
  • rated voltage: 58V

343.435-58V

238088 343.435-58V 343.435-58V ESKA automotive fuse series 343.400-58V Maxi. automotive blade type fuses in an insulating plastic housing suitable for applications in the automotive industry with zinc alloy contacts breaking capacity: 1000A rated current: 20 to 100A rated voltage: 58V

Specifications

manufacturer
Manufacturer's name 343.435-58V
Colour red
Contact resistance, max. [mΩ] 11
Rated current [A] 50
Nominal voltage [V] 58
Breaking current [A] 1000
Data Sheet

Unit price

2,39 €

Stock: 97
Further delivery:
CW 26/2024

Minimum order quantity 50 units or
multiples of 50.
