7 grün 1x10 K

Everlight LED display series S43

  • 7-segment LED displays
  • 1 digit
  • with a digit height of 10mm
  • common anode (7_ 1x10 A) resp. cathode (7_ 1x10 K)

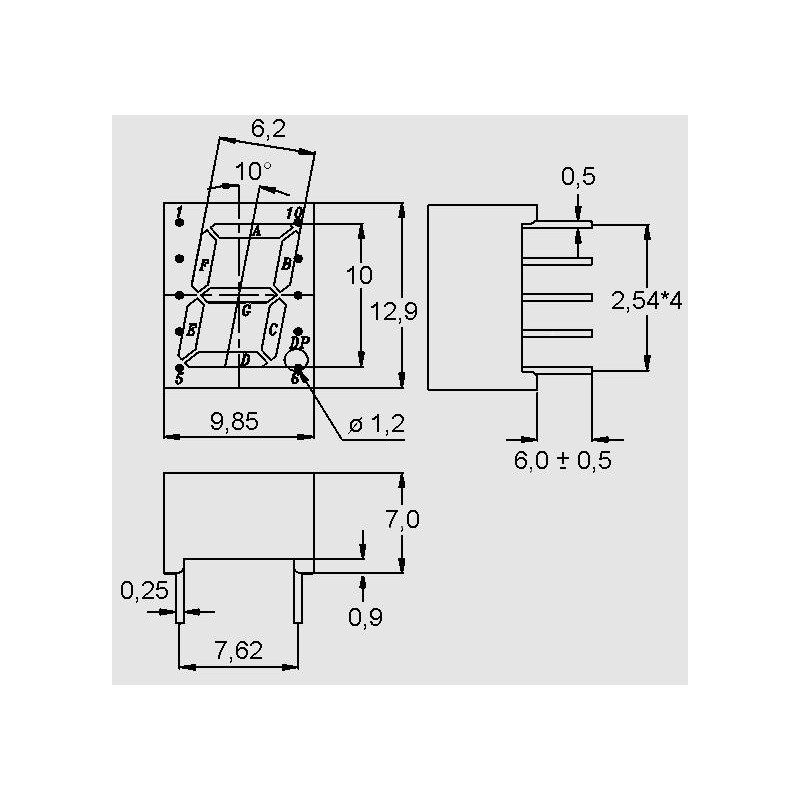

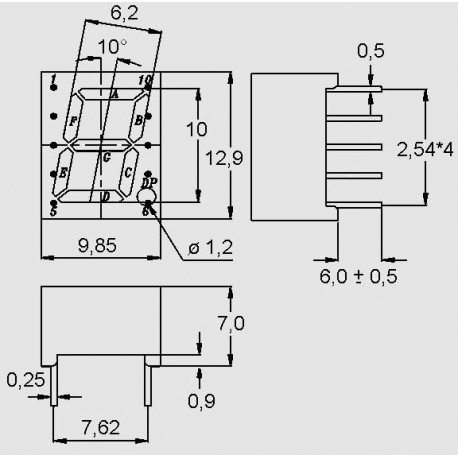

  • dimensions: 12,9x9,85mm

7 grün 1x10 K

28688 7 grün 1x10 K S431SYGWA/S530-E2 S431SYGWA/S530-E2 Everlight LED display series S43. 7-segment LED displays 1 digit with a digit height of 10mm common anode (7_ 1x10 A) resp. cathode (7_ 1x10 K) dimensions: 12,9x9,85mm

Specifications

manufacturer
Manufacturer's name S431SYGWA/S530-E2
Colour green
Digit height [mm] 10mm
Number of digits 1 digit
Forward current [mA] 10
Wavelength [nm] 575
Luminous intensity [µcd] 4,5
Data Sheet

Unit price

0,284 €

Stock: 1748
Further delivery:
CW 44/2024

Minimum order quantity 19 units or
multiples of 19.
