B 40 C 35000 DR

Fagor bridge rectifier series FB35

  • power bridge rectifiers
  • with a wire bonding (B_) or a tab terminal (FB_)
  • thermal resistance: 1,5°C/W
  • forward current: 35A

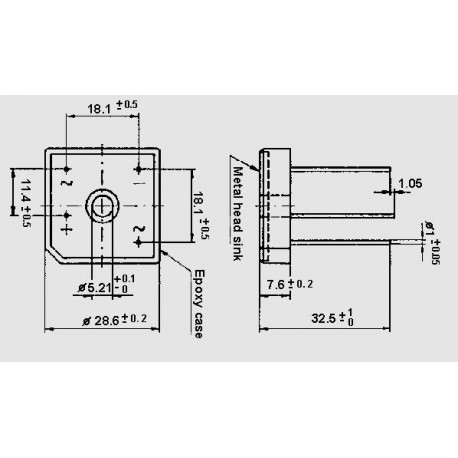

dimensions B _ C 35000 DR

B 40 C 35000 DR

1985 B 40 C 35000 DR FB3501L FB3501L Fagor bridge rectifier series FB35. power bridge rectifiers with a wire bonding (B_) or a tab terminal (FB_) thermal resistance: 1,5°C/W forward current: 35A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FB3501L
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 35
(Max.) RMS voltage [V] 70

Unit price

4,99 €

Stock: 2
