B 500 C 35000 DR

Fagor bridge rectifier series FB35

  • power bridge rectifiers
  • with a wire bonding (B_) or a tab terminal (FB_)
  • thermal resistance: 1,5°C/W
  • forward current: 35A

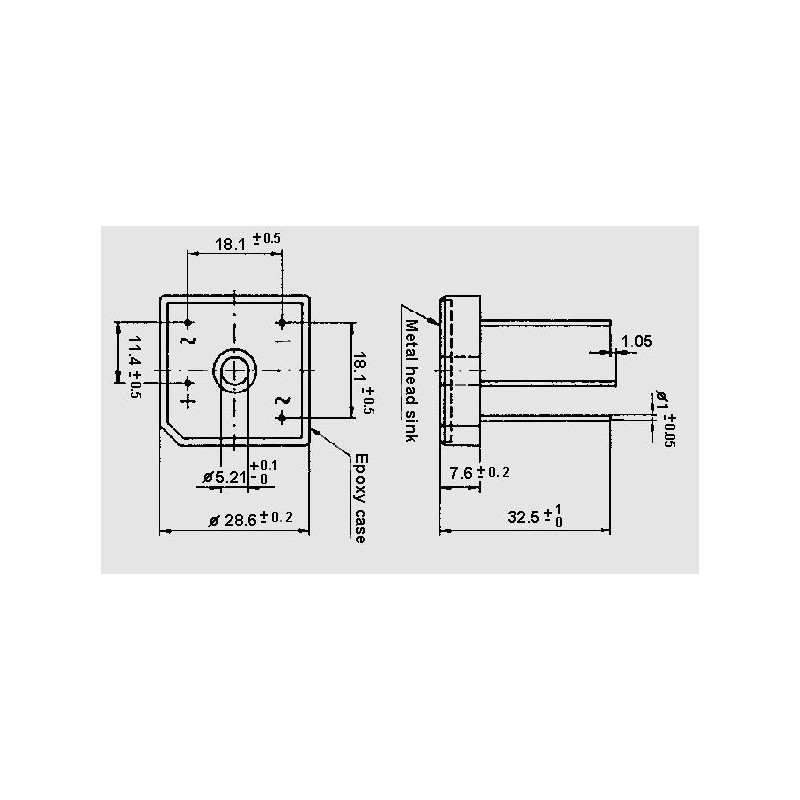

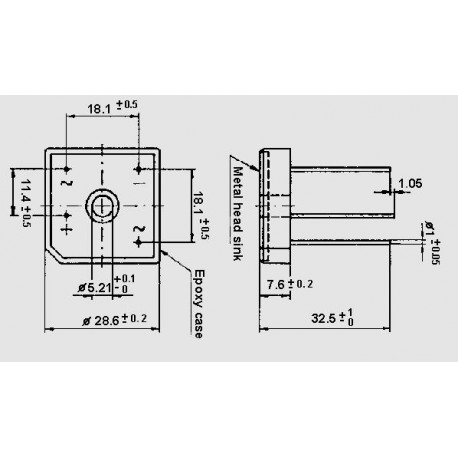

dimensions B _ C 35000 DR

B 500 C 35000 DR

25812 B 500 C 35000 DR FB3510L FB3510L Fagor bridge rectifier series FB35. power bridge rectifiers with a wire bonding (B_) or a tab terminal (FB_) thermal resistance: 1,5°C/W forward current: 35A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FB3510L
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 35
(Max.) RMS voltage [V] 700

Unit price

3,09 €

Stock: 4
Next incoming goods:
CW 12/2026
500 units

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
