B 500 C 35000 FS

Fagor bridge rectifier series FB35

  • power bridge rectifiers
  • with a wire bonding (B_) or a tab terminal (FB_)
  • thermal resistance: 1,5°C/W
  • forward current: 35A

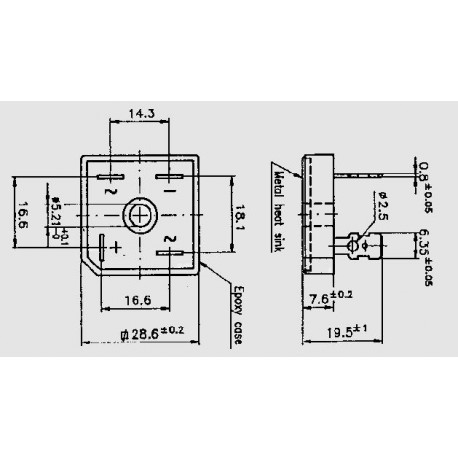

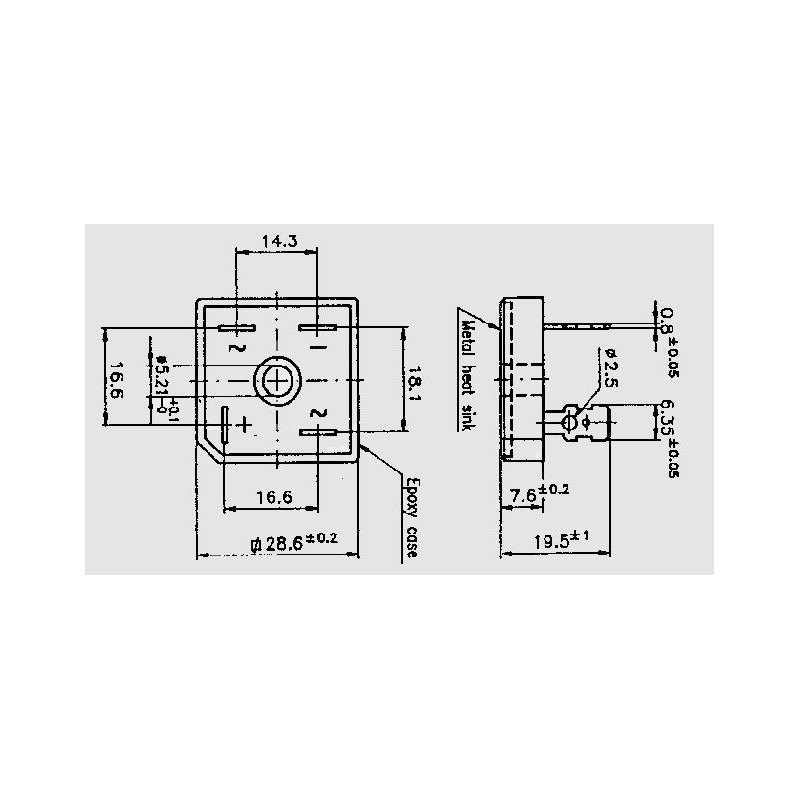

dimensions B _ C 35000 FS

B 500 C 35000 FS

25813 B 500 C 35000 FS FB3510 FB3510 Fagor bridge rectifier series FB35. power bridge rectifiers with a wire bonding (B_) or a tab terminal (FB_) thermal resistance: 1,5°C/W forward current: 35A

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FB3510
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 35
(Max.) RMS voltage [V] 700

Unit price

2,89 €

Stock: 2
