FS 1 M SMD

Fagor SMD Si-rectifier diode series FS 1

  • SMD Si-rectifier diodes
  • in an SMA housing
  • glass passivated
  • forward current: 1A

FS 1 M SMD

347 FS 1 M SMD FS1M FS1M Fagor SMD Si-rectifier diode series FS 1. SMD Si-rectifier diodes in an SMA housing glass passivated forward current: 1A

Specifications

manufacturer
Manufacturer's name FS1M

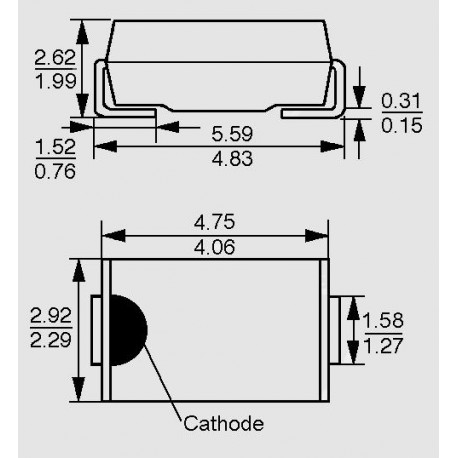

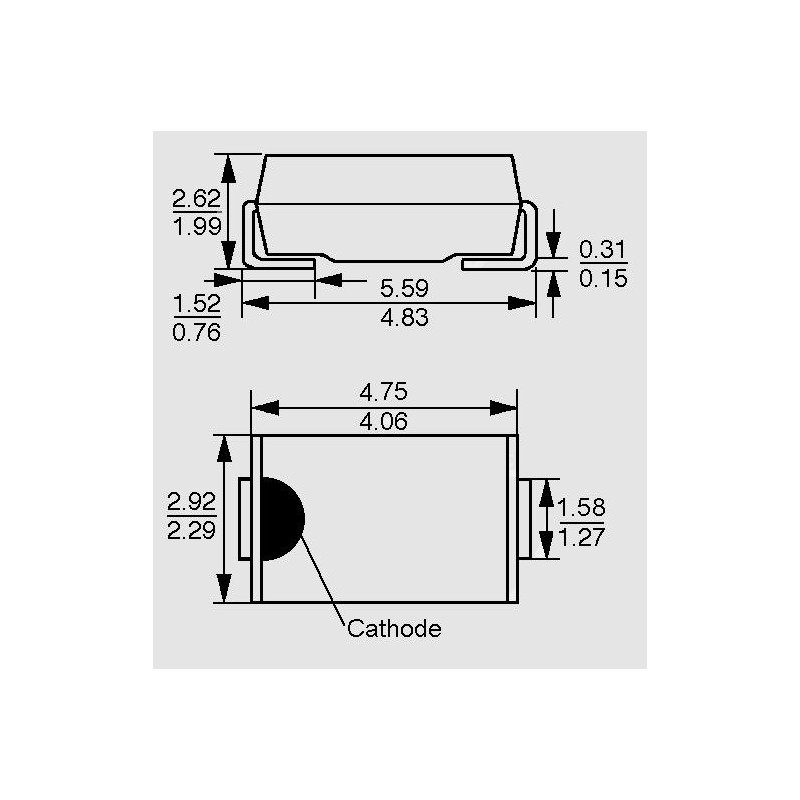

Case SMA
Operating temperature range [°C] -55...+150
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
Reverse current [µA] 1
(Max.) average forward (rectified) current [A] 1
Data Sheet

Unit price

0,0287 €

Stock: 0
Next incoming goods:
CW 07/2025
20000 units


Further delivery:
CW 37/2025

Minimum order quantity 500 units or
multiples of 500.
