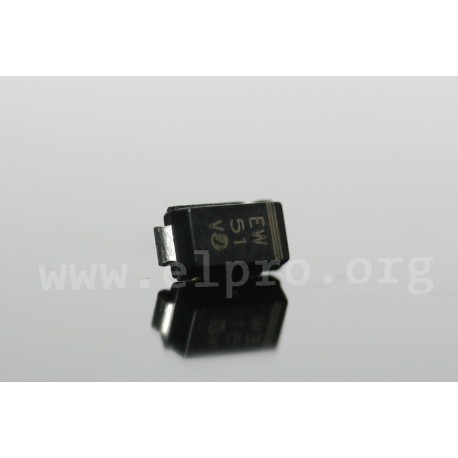

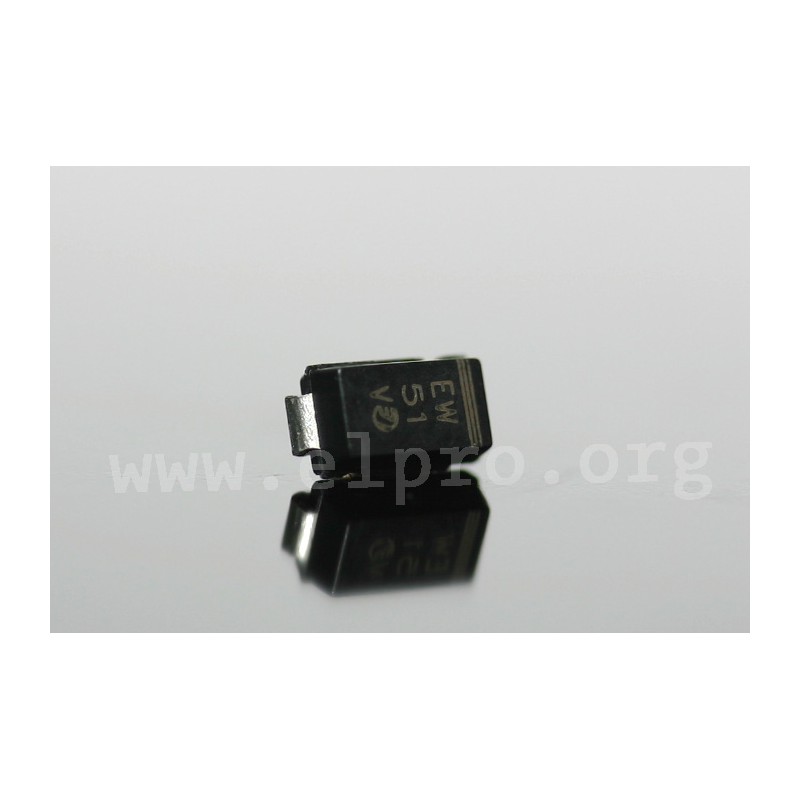

Z 1 SMA 10 V

Z diodes 1W, SMD

* glass passivated
* housings: DO214AC/SMA
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s

Z 1 SMA 10 V

1704 Z 1 SMA 10 V Z1SMA10 TRTB Z1SMA10 TRTB Z diodes 1W, SMD. * glass passivated* housings: DO214AC/SMA* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name Z1SMA10 TRTB
Case DO214AC/SMA
Reverse current [µA] 1
Reverse voltage [V] 7,5
Zener voltage range [V] 9,4...10,6
Max. zener current [A] 105
Max. zener impedance [Ω] 4
Test current [mA] 50
Power dissipation [W] 1,3

Unit price

0,098 €

Stock: 7100

Minimum order quantity 100 units or
multiples of 100.
