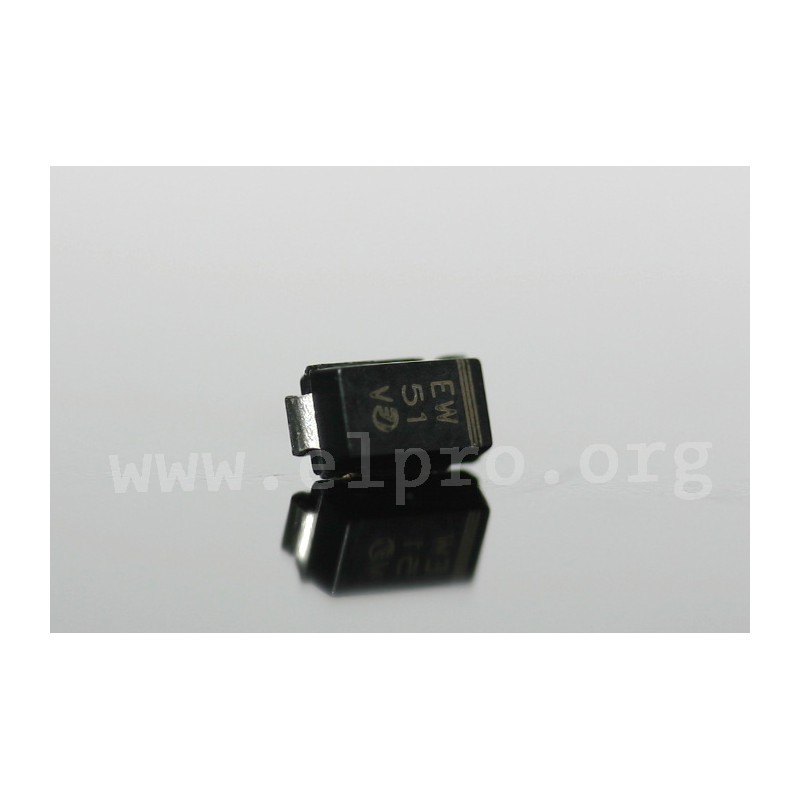

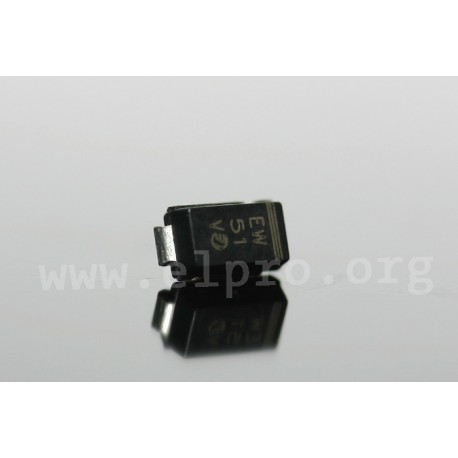

Z 1 SMA 24 V

Z diodes 1W, SMD

* glass passivated
* housings: DO214AC/SMA
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s

Z 1 SMA 24 V

1708 Z 1 SMA 24 V Z1SMA24 TRTB Z1SMA24 TRTB Z diodes 1W, SMD. * glass passivated* housings: DO214AC/SMA* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Specifications

manufacturer
Manufacturer's name Z1SMA24 TRTB
Case DO214AC/SMA
Reverse current [µA] 1
Reverse voltage [V] 18
Zener voltage range [V] 22,8...25,6
Max. zener current [A] 47
Max. zener impedance [Ω] 15
Test current [mA] 25
Power dissipation [W] 1,3

Unit price

0,08 €

Stock: 0
Further delivery:
CW 01/2024

Minimum order quantity 7.500 units or
multiples of 7.500.
