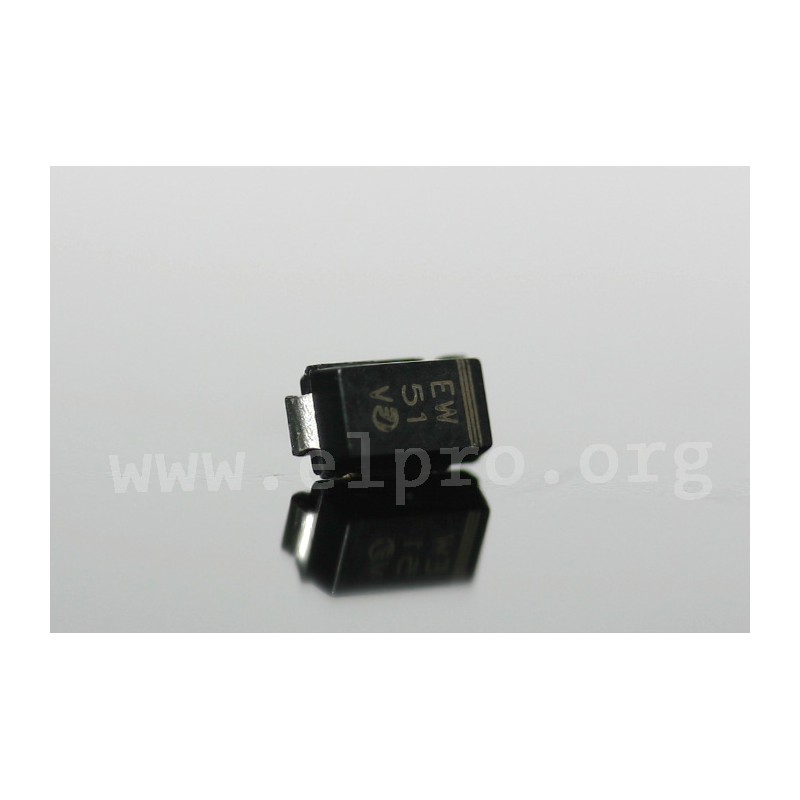

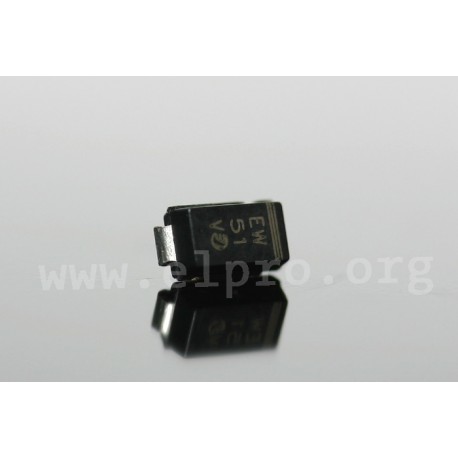

Z 1 SMA 6,2 V

Z diodes 1W, SMD

* glass passivated
* housings: DO214AC/SMA
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s
Z 1 SMA 33 V

Z 1 SMA 6,2 V

1710 Z 1 SMA 6,2 V Z1SMA6V2 TRTB Z1SMA6V2 TRTB Z diodes 1W, SMD. * glass passivated* housings: DO214AC/SMA* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name Z1SMA6V2 TRTB
Case DO214AC/SMA
Reverse current [µA] 5
Reverse voltage [V] 3
Max. zener current [A] 161
Zener voltage range [V] 5,8...6,6
Max. zener impedance [Ω] 2
Test current [mA] 100
Power dissipation [W] 1,3

Unit price

0,13 €

Stock: 45

Minimum order quantity 1 to 45 units or multiples of 100 plus 0 to 45 .
