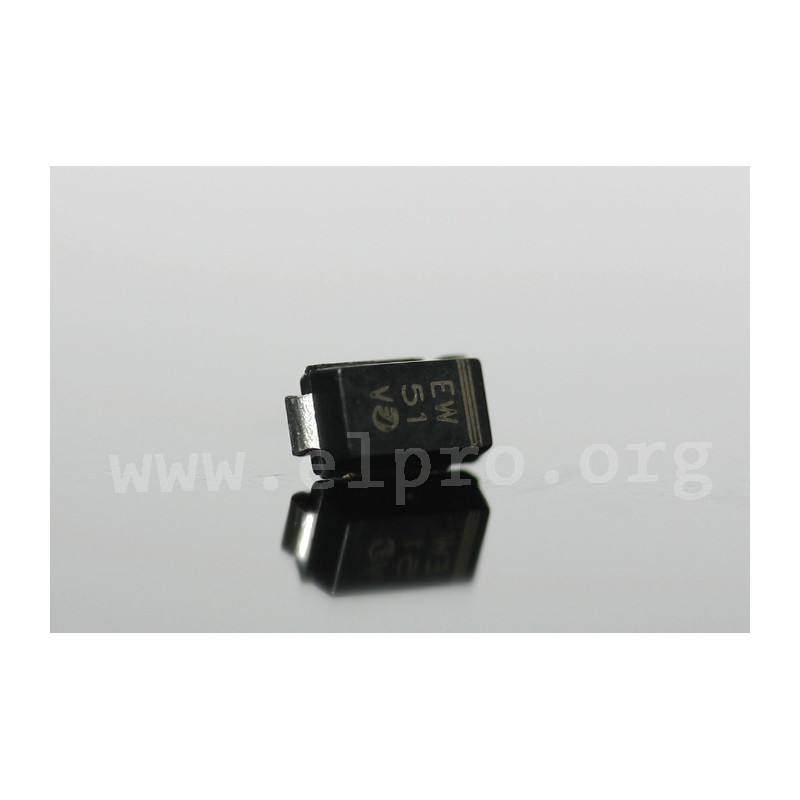

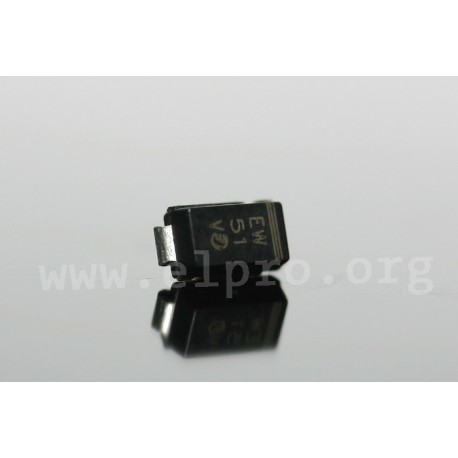

Z 1 SMA 6,8 V

Z diodes 1W, SMD

* glass passivated
* housings: DO214AC/SMA
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s

Z 1 SMA 6,8 V

1711 Z 1 SMA 6,8 V Z1SMA6V8 TRTB Z1SMA6V8 TRTB Z diodes 1W, SMD. * glass passivated* housings: DO214AC/SMA* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Specifications

manufacturer
Manufacturer's name Z1SMA6V8 TRTB
Case DO214AC/SMA
Reverse current [µA] 5
Reverse voltage [V] 4
Zener voltage range [V] 6,4...7,2
Max. zener current [A] 147
Max. zener impedance [Ω] 2,5
Test current [mA] 100
Power dissipation [W] 1,3

Unit price

0,092 €

Stock: 0
Further delivery:
CW 01/2024

Minimum order quantity 15.000 units or
multiples of 15.000.
