JS-12N-K-EB

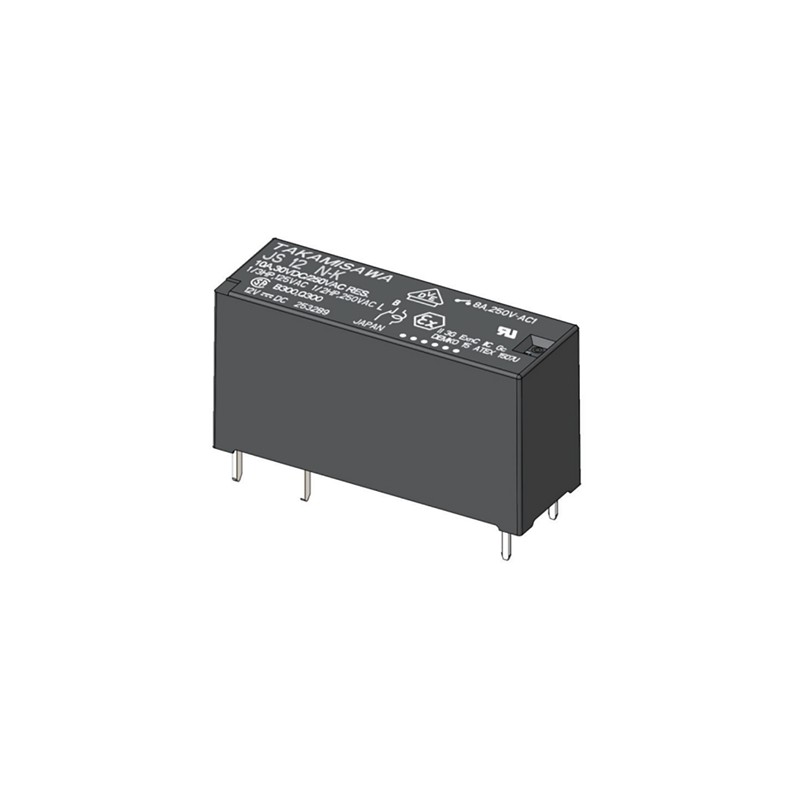

FCL Components printrelays series JS

These printrelays with 8A/300V DC and ATEX compliant. They are made of sealed plastic, have a low profile, and are space-saving (12.5mm high, 290mm² mounting area). We offer various types of this FCL Components series.

  • contact: SPST-NO
  • nominal switching current: 8A
  • nominal switching voltage: 300V DC
  • operating temperature: -40 to +85°C
  • housing: 10x29x12,5mm
  • weight: 8g

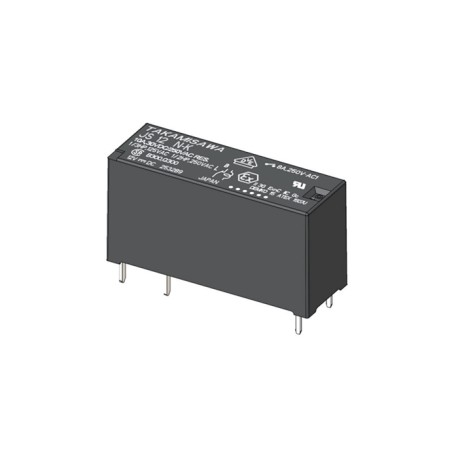

JS-12N-K-EB, FCL Components printrelays, 8A, SPST-NO, JS series

JS-12N-K-EB

256486 JS-12N-K-EB JS-12N-K-EB FCL Components printrelays series JS. These printrelays with 8A/300V DC and ATEX compliant. They are made of sealed plastic, have a low profile, and are space-saving (12.5mm high, 290mm² mounting area). We offer various types of this FCL Components series. contact: SPST-NO nominal switching current: 8A nominal switching voltage: 300V DC operating temperature: -40 to +85°C housing: 10x29x12,5mm weight: 8g

Specifications

manufacturer
Manufacturer's name JS-12N-K-EB
Nominal voltage [V DC] 12
Coil resistance [Ω] 660
Nominal capacity [mW] 220
Data Sheet

Unit price

1,42 €

Stock: 0
Further delivery:
CW 43/2026

Minimum order quantity 4.000 units or
multiples of 4.000.
