22.64.0.024.4710

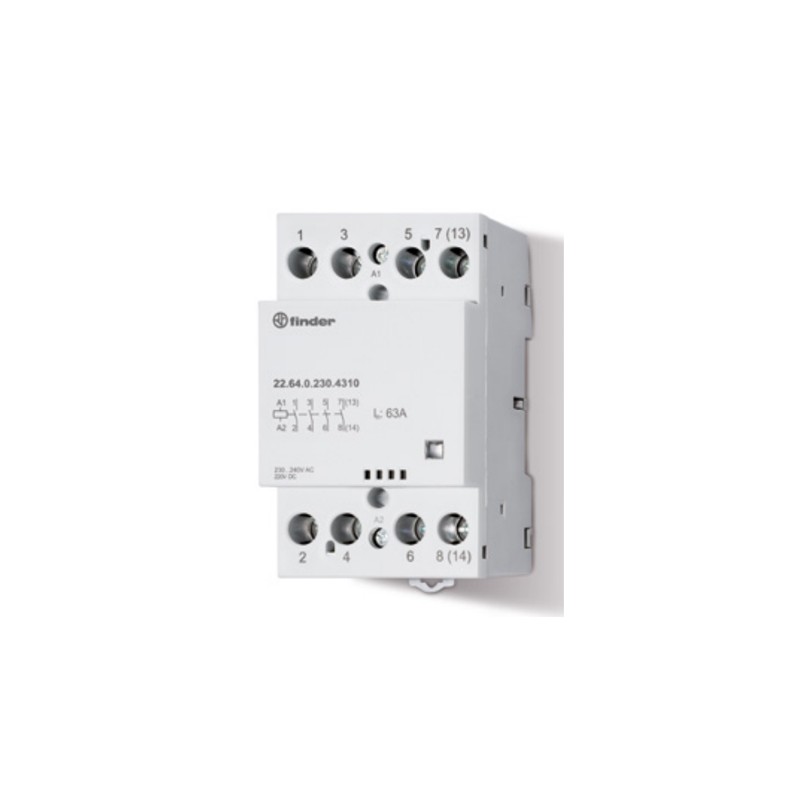

Finder Installation relays series 22.64

Installation relays with four contacts and confirming with IP20. These relais are suitable for DIN rail mounting on rails of up to 35mm (EN 60715). We offer the following types of this Finder series: 22.64.0.024.4310, 22.64.0.024.4710, 22.64.0.230.43100, and 22.64.0.230.4710.

  • switching current: 63A
  • contact gap: NO contact ≥ 3mm, NC contact ≥ 3mm
  • operating temperature: -25 to 55°C
  • dimensions: 95,8x53,5x63,1mm
22.64.0.024.4710, Finder Installation relays, 4x contacts, IP20, 22.64 series

22.64.0.024.4710

253525 22.64.0.024.4710 22.64.0.024.4710 Finder Installation relays series 22.64. Installation relays with four contacts and confirming with IP20. These relais are suitable for DIN rail mounting on rails of up to 35mm (EN 60715). We offer the following types of this Finder series: 22.64.0.024.4310, 22.64.0.024.4710, 22.64.0.230.43100, and 22.64.0.230.4710. switching current: 63A contact gap: NO contact ≥ 3mm, NC contact ≥ 3mm operating temperature: -25 to 55°C dimensions: 95,8x53,5x63,1mm

Specifications

manufacturer
Manufacturer's name 22.64.0.024.4710
Nominal voltage [V DC] 24
Contacts 3PST-NO + SPST-NC

Unit price

65,09 €

Stock: 1
Further delivery:
CW 14/2026
