39.11.8.230.0060

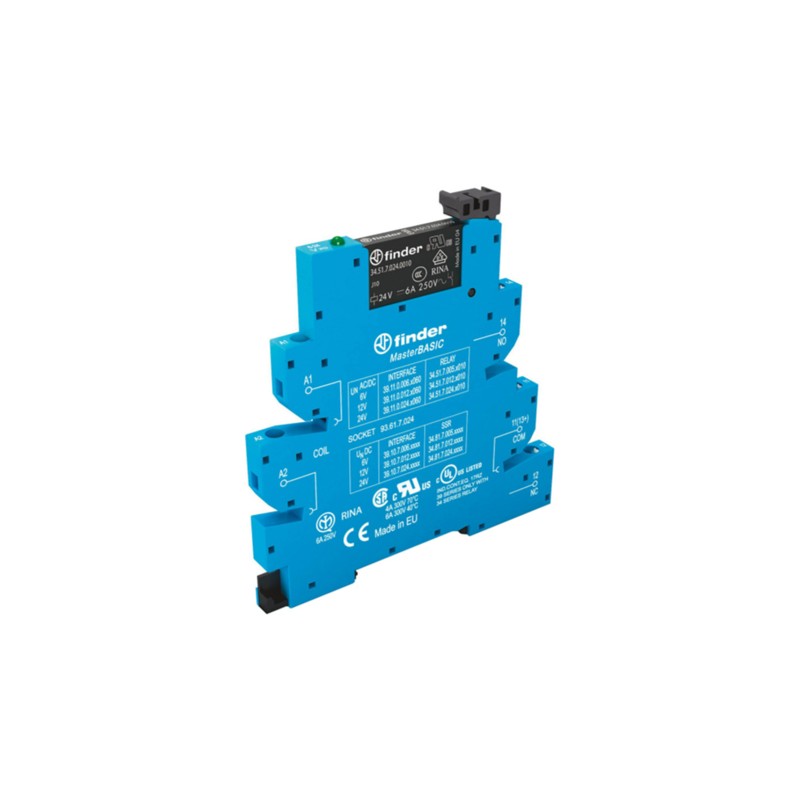

Finder switching relays series 39.11

These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 6A. Thesse devices have a width of 6.2mm and conform with relay protection type IP20. We offer the following types of this Finder series: 39.11.0.012.0060, 39.11.0.024.0060, and 39.11.8.230.0060.

  • contact type: 1x changeover contact
  • contact material: AgNi
  • nominal switching current: 6A
  • switching current: 10A
  • nominal voltage: 250V AC
  • switching voltage, max.: 400V AC
  • switching power, max.: 1500VA
  • switching load, min.: 500mW
  • operating temperature: -40 to +70°C

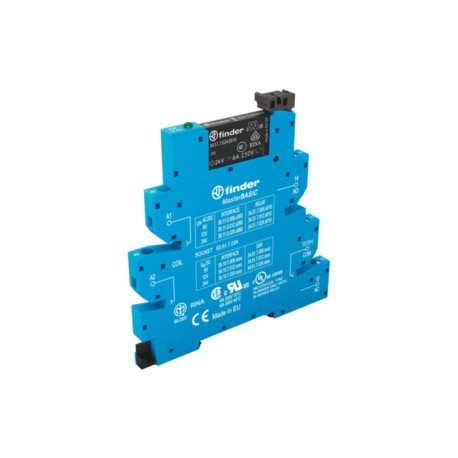

39.11.8.230.0060, Finder switching relays, 6A, 1x changeover contact (SPDT), 39.11 series

39.11.8.230.0060

253504 39.11.8.230.0060 39.11.8.230.0060 Finder switching relays series 39.11. These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 6A. Thesse devices have a width of 6.2mm and conform with relay protection type IP20. We offer the following types of this Finder series: 39.11.0.012.0060, 39.11.0.024.0060, and 39.11.8.230.0060. contact type: 1x changeover contact contact material: AgNi nominal switching current: 6A switching current: 10A nominal voltage: 250V AC switching voltage, max.: 400V AC switching power, max.: 1500VA switching load, min.: 500mW operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name 39.11.8.230.0060
Nominal voltage [V DC] 230
Max. operating voltage [V DC] 264

Unit price

17,09 €

Stock: 6
Further delivery:
CW 14/2026
