48.52.7.024.5050

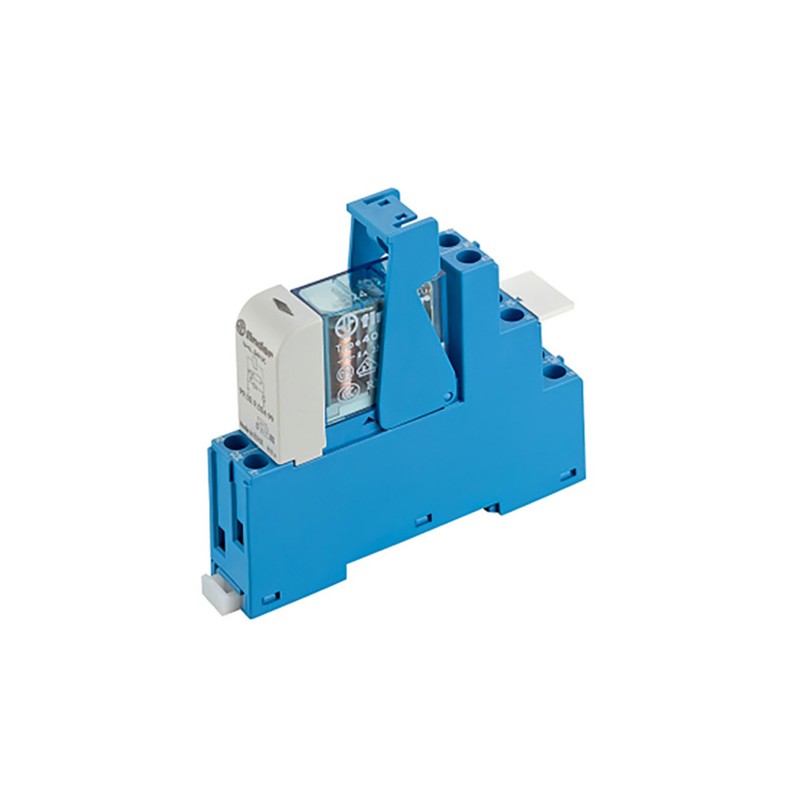

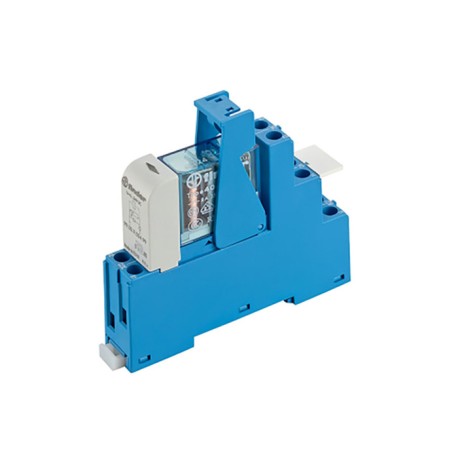

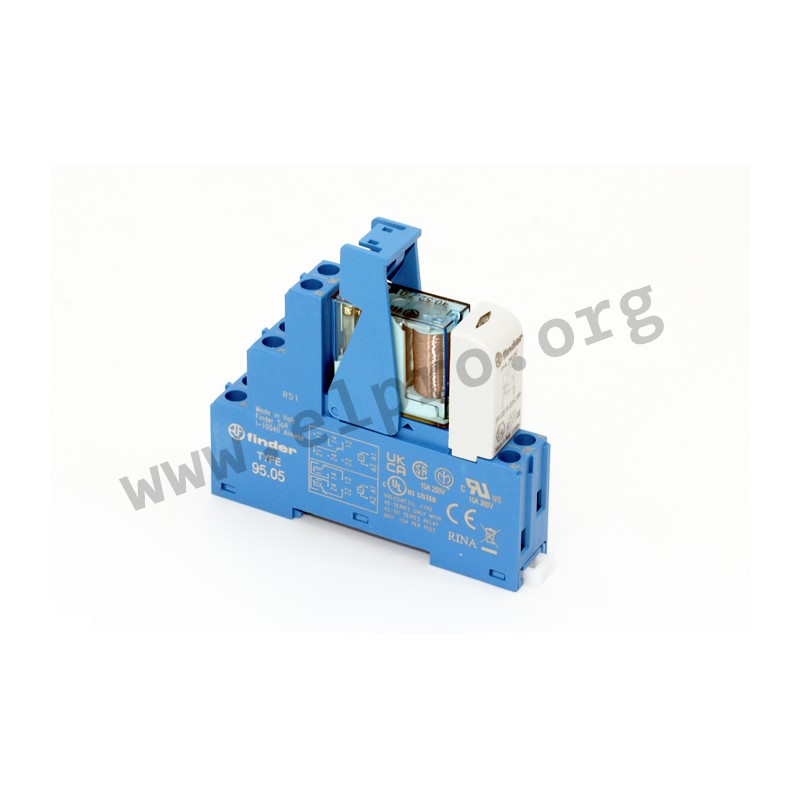

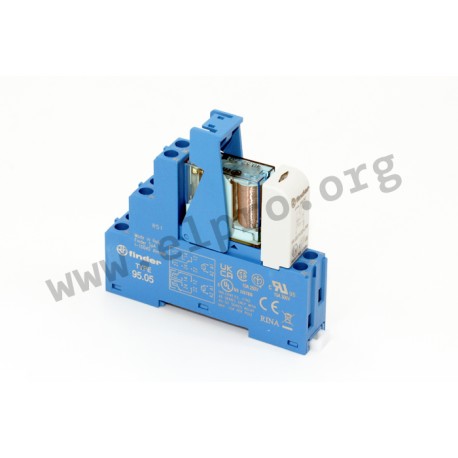

Finder switching relays series 48.52

These switching relays with a screw terminal, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the various types of this Finder series.

  • contact type: 2x changeover contact
  • contact material: AgNi
  • nominal switching current: 8A
  • switching current: 15A
  • nominal voltage: 250V AC
  • switching voltage, max.: 400V AC
  • switching power, max.: 2000VA
  • switching load, min.: 300mV
  • air-/creepage distance: 8/8mm
  • attack-/drop out time: 12/12ms (48.52.7.024.0050), 8/8ms (48.52.7.230.0060)
  • Prüfspannung: 6000V (inductor/contact), 1000V (open contact)
  • lifespan: 10^7 cycles (mechanic), 10^5 cycles (electric)
  • operating temperature: -40 to +70°C

48.52.7.024.5050, Finder switching relays, 8A, 2x changeover contact (DPDT), 48.52 series

48.52.7.024.5050

253488 48.52.7.024.5050 48.52.7.024.5050 Finder switching relays series 48.52. These switching relays with a screw terminal, for carrier rails with 35mm, have two changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the various types of this Finder series. contact type: 2x changeover contact contact material: AgNi nominal switching current: 8A switching current: 15A nominal voltage: 250V AC switching voltage, max.: 400V AC switching power, max.: 2000VA switching load, min.: 300mV air-/creepage distance: 8/8mm attack-/drop out time: 12/12ms (48.52.7.024.0050), 8/8ms (48.52.7.230.0060) Prüfspannung: 6000V (inductor/contact), 1000V (open contact) lifespan: 10^7 cycles (mechanic), 10^5 cycles (electric) operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name 48.52.7.024.5050
Nominal voltage [V DC] 24
Max. operating voltage [V DC] 36

Unit price

17,39 €

Stock: 10
Further delivery:
CW 07/2026
