4C.02.9.024.0050

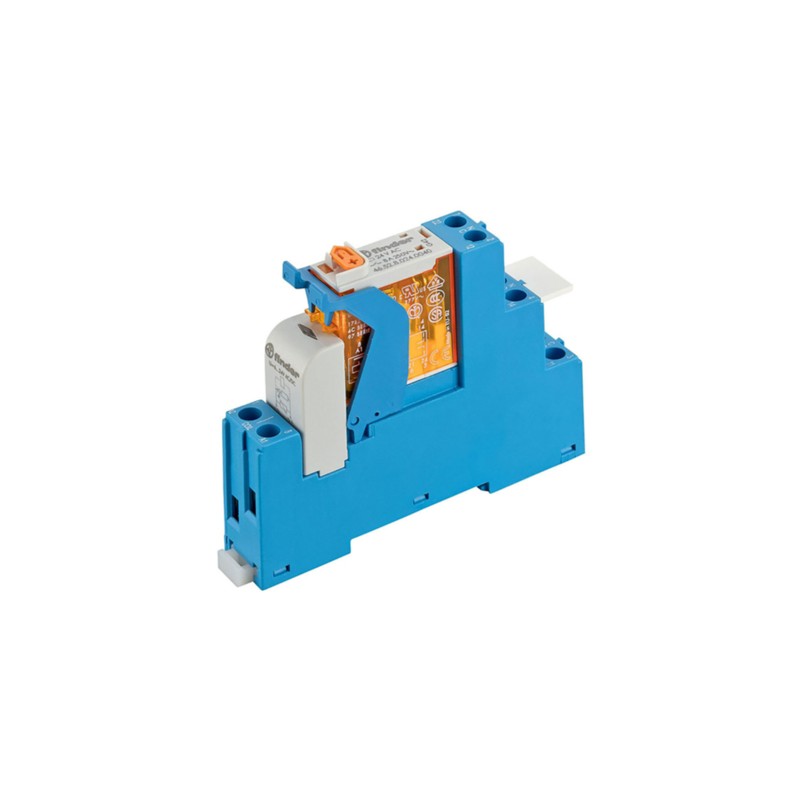

Finder switching relays series 4C.02

These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the following types of this Finder series: 4C.02.8.024.0060, 4C.02.8.230.0060, 4C.02.9.012.0050, and 4C.02.9.024.0050.

  • contact type: 2x changeover contact
  • contact material: AgNi
  • nominal switching current: 8A
  • switching current: 15A
  • nominal voltage: 250V AC
  • switching voltage, max.: 440V AC
  • switching power, max.: 2000VA
  • switching load, min.: 300mW
  • operating temperature: -40 to +70°C

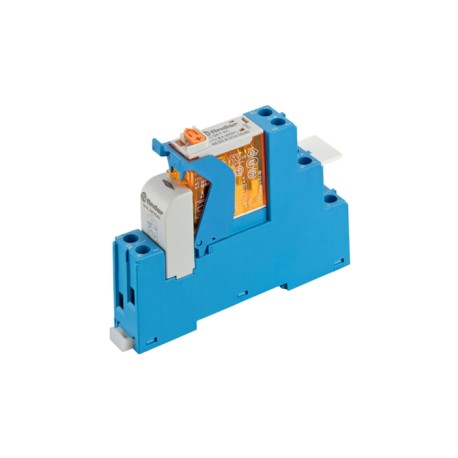

4C.02.9.024.0050, Finder switching relays, 8A, 2x changeover contact (DPDT), 4C.02 series

4C.02.9.024.0050

253501 4C.02.9.024.0050 4C.02.9.024.0050 Finder switching relays series 4C.02. These switching relays with a screw terminal, for carrier rails with 35mm, have one changeover contacts, and 8A. They have a cadmium free contact material, LED screen and EMV interference suppression modules. Thesse devices conform with over voltage category III and relay protection type IP20. We offer the following types of this Finder series: 4C.02.8.024.0060, 4C.02.8.230.0060, 4C.02.9.012.0050, and 4C.02.9.024.0050. contact type: 2x changeover contact contact material: AgNi nominal switching current: 8A switching current: 15A nominal voltage: 250V AC switching voltage, max.: 440V AC switching power, max.: 2000VA switching load, min.: 300mW operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name 4C.02.9.024.0050
Nominal voltage [V DC] 24
Max. operating voltage [V DC] 26,4
Data Sheet

Unit price

15,89 €

Stock: 6
Further delivery:
CW 14/2026
