72.01.9.024.0000

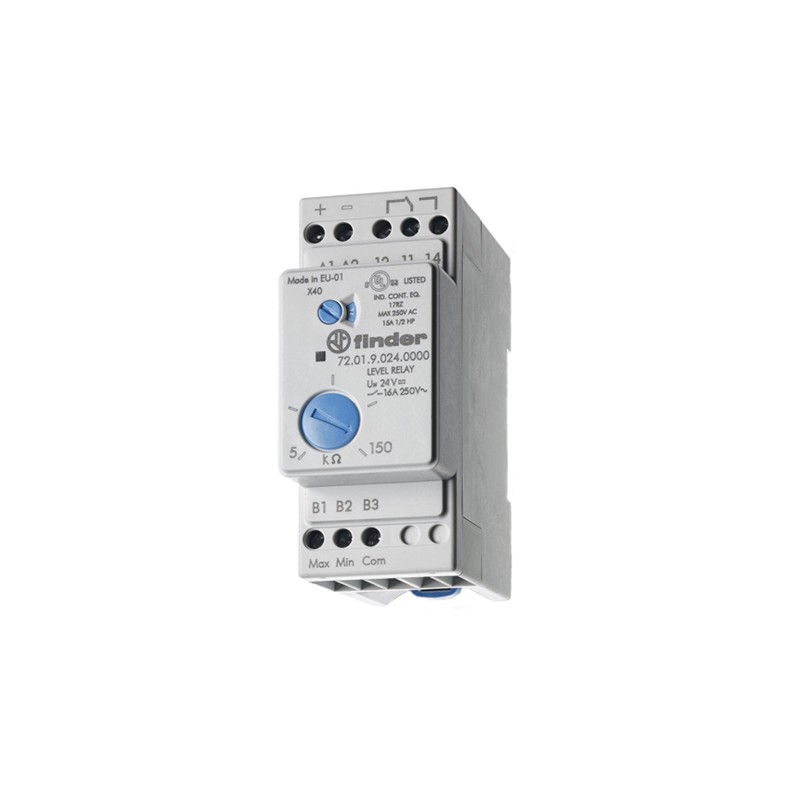

Finder Level control relays series 72.01

Level control relays for conductive liquids, for DIN rail mounting on on rails of 35mm (EN60715). These relays have a LED status display, 16A, and are adjustable in sensitivity. We offer the following types of this Finder series: 72.01.8.240.0000 and 72.01.9.024.0000.

Additionally, we offer the following accessories for this Finder series: 072.01.06, 072.11, and 072.51.

  • contact: 1x CO contact
  • protection catagory: IP20
  • contact material: AgNi
  • rated current, max.: 16A
  • inrush current, max.: 30A
  • rated voltage: 250V AC
  • operating temperature: -20 to +60°C
72.01.9.024.0000, Finder Level control relays, 1x changeover contact, 16A, 72.01 series

72.01.9.024.0000

253530 72.01.9.024.0000 72.01.9.024.0000 Finder Level control relays series 72.01. Level control relays for conductive liquids, for DIN rail mounting on on rails of 35mm (EN60715). These relays have a LED status display, 16A, and are adjustable in sensitivity. We offer the following types of this Finder series: 72.01.8.240.0000 and 72.01.9.024.0000. Additionally, we offer the following accessories for this Finder series: 072.01.06, 072.11, and 072.51. contact: 1x CO contact protection catagory: IP20 contact material: AgNi rated current, max.: 16A inrush current, max.: 30A rated voltage: 250V AC operating temperature: -20 to +60°C

Specifications

manufacturer
Manufacturer's name 72.01.9.024.0000
Contacts 1x CO

Unit price

52,79 €

Stock: 1
Further delivery:
CW 14/2026
