ICK PGA8X8X12

Fischer heatsink series ICK PGA

  • heatsinks with an excellent thermal efficiency which is achieved by a flow-favorable omnidirectional fin geometry
  • are easily mounted with thermally conductive adhesive foil or thermally conductive glue
  • for PGA housings
  • black anodised

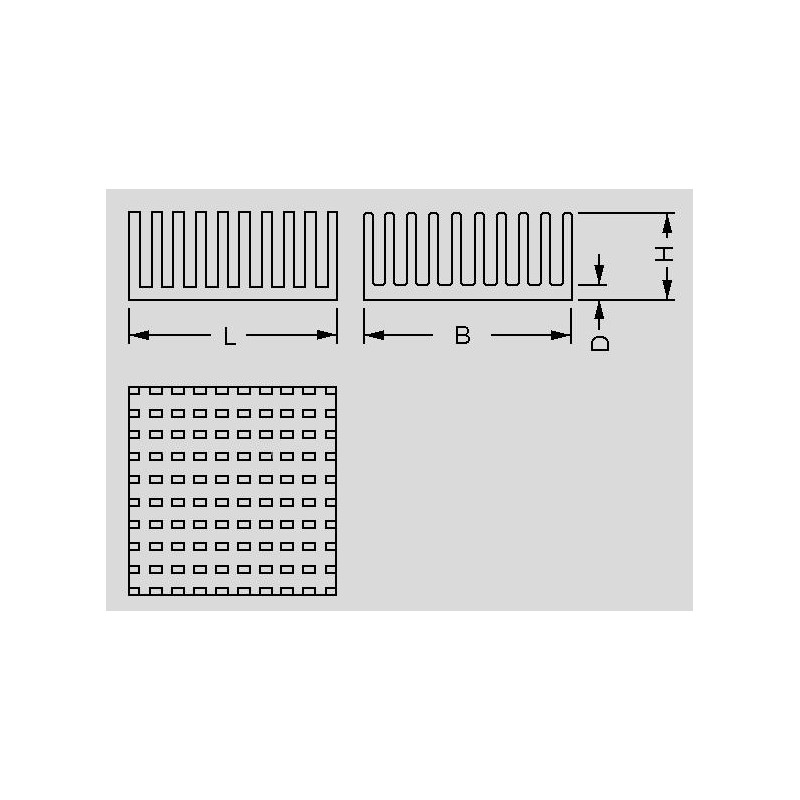

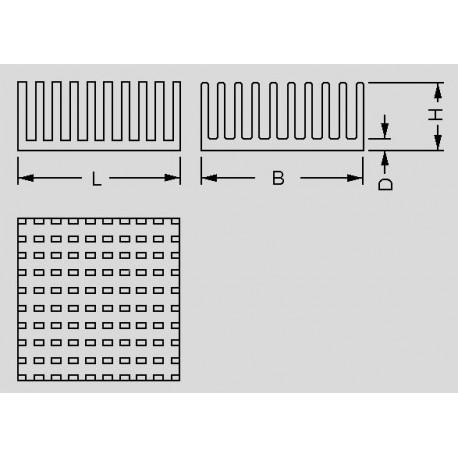

dimensions

ICK PGA8X8X12

39419 ICK PGA8X8X12 ICK PGA 8 X 8 X 12 ICK PGA 8 X 8 X 12 Fischer heatsink series ICK PGA. heatsinks with an excellent thermal efficiency which is achieved by a flow-favorable omnidirectional fin geometry are easily mounted with thermally conductive adhesive foil or thermally conductive glue for PGA housings black anodised

Specifications

manufacturer
Manufacturer's name ICK PGA 8 X 8 X 12
Thermal resistance [°C/W] 15-4
Height [mm] 12,3
Width [mm] 23
D [mm] 2,5
Length [mm] 23
Data Sheet

Unit price

1,24 €

Stock: 195
Further delivery:
CW 52/2025

Minimum order quantity 5 units or
multiples of 5.
