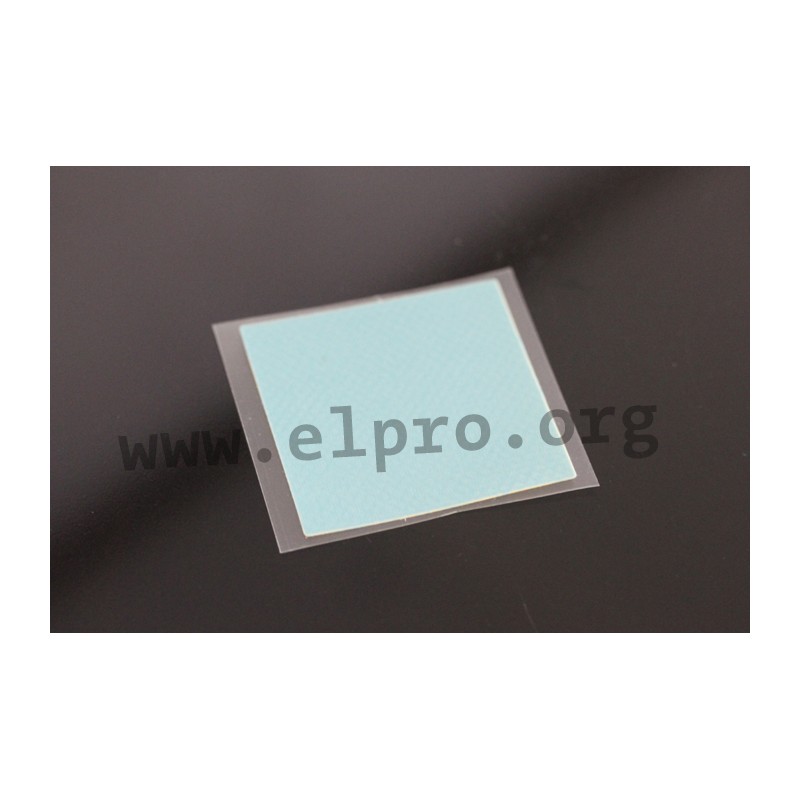

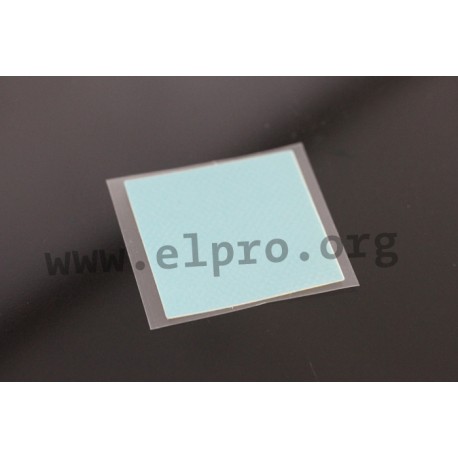

WLFT 404 23x23mm

Fischer thermally conductive foil series WLFT

  • thermally conductive foil with adhesive layers on both sides and good thermal characteristics
  • replaces mechanical fastenings
  • electrically insulating
  • truss material: 0,025mm Polyimide
  • breakdown voltage (AC): 5kV
  • complete thickness: 0,127±0,03mm
  • temperature range: -40 to 150°C
  • specific thermal resistance: 3,7°C cm2/W
  • flammability class: UL94V-0
WLFT 404

WLFT 404 23x23mm

36270 WLFT 404 23x23mm WLFT 404 23 X 23 WLFT 404 23 X 23 Fischer thermally conductive foil series WLFT. thermally conductive foil with adhesive layers on both sides and good thermal characteristics replaces mechanical fastenings electrically insulating truss material: 0,025mm Polyimide breakdown voltage (AC): 5kV complete thickness: 0,127±0,03mm temperature range: -40 to 150°C specific thermal resistance: 3,7°C cm2/W flammability class: UL94V-0

Specifications

manufacturer
Manufacturer's name WLFT 404 23 X 23
Data Sheet

Unit price

0,82 €

Stock: 100
Further delivery:
CW 02/2026
