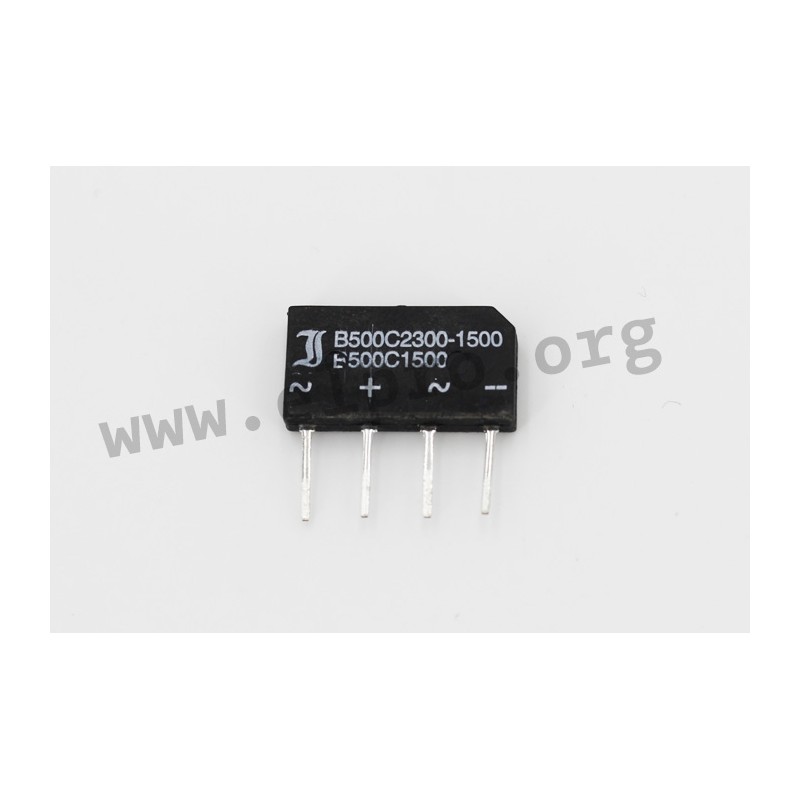

B 500 C 2300-1500 B

bridge rectifiers 1.5A

* glass passivated
* pin spacing FB _V 1,5A 5/5/5 mm, B 80 C 1500/1000 and D2 SB_: 5/5/5mm
* pin spacing FB 200V 1,5A 4/4/4 mm: 4/4/4mm
* pin spacing KBP: 3.8/3.8mm
* plastic, UL94V-0
* solderability, max. 260°C/10s

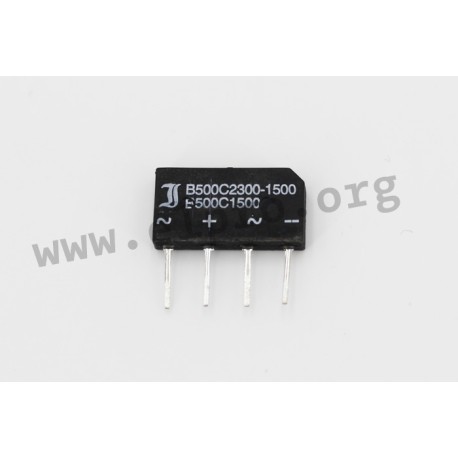

B500C1500B, flat rectifiers 1.5A

B 500 C 2300-1500 B

35638 B 500 C 2300-1500 B B500C1500B B500C1500B bridge rectifiers 1.5A. * glass passivated * pin spacing FB _V 1,5A 5/5/5 mm, B 80 C 1500/1000 and D2 SB_: 5/5/5mm * pin spacing FB 200V 1,5A 4/4/4 mm: 4/4/4mm* pin spacing KBP: 3.8/3.8mm * plastic, UL94V-0* solderability, max. 260°C/10s

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name B500C1500B
Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 1000
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 1,5
(Max.) RMS voltage [V] 500
Data Sheet

Unit price

0,565 €

Stock: 125

Minimum order quantity 25 units or
multiples of 25.
