> Passive elements>Capacitors>Electrolytic capacitors>FTCAP electrolytic capacitors, radial, RM10, snap-in, 105°C, SIH series>SIH22206325030

Manufacturers

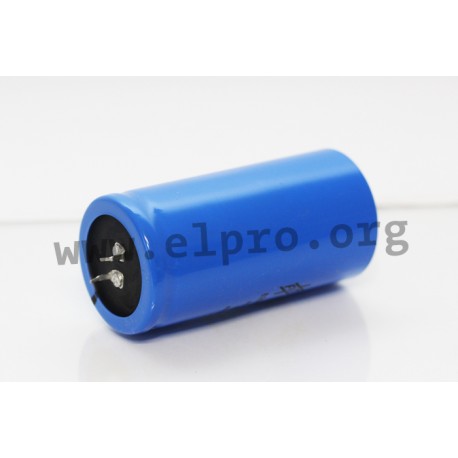

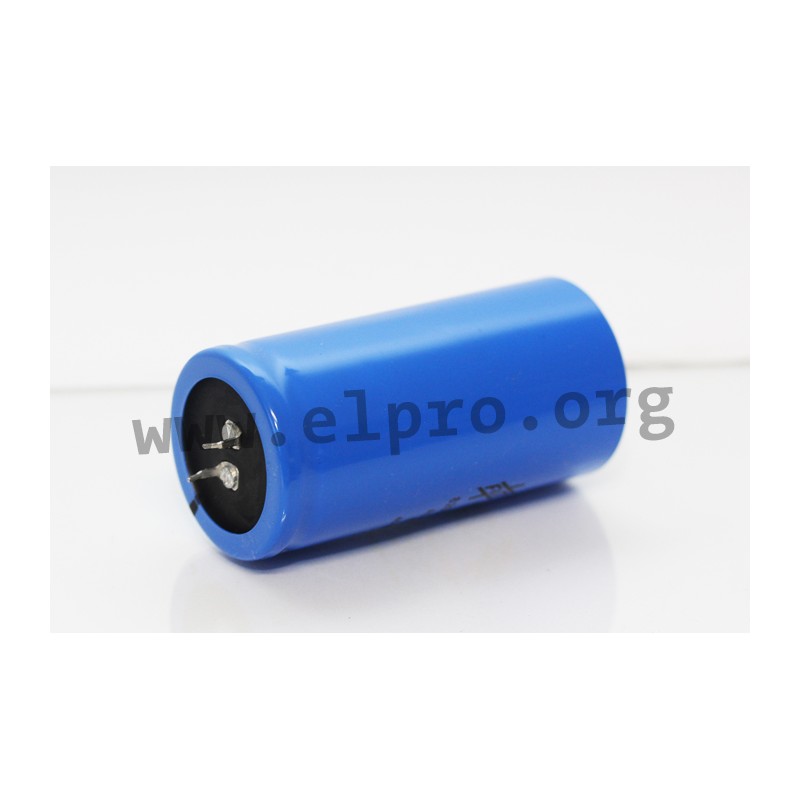

SIH22206325030

FTCAP capacitor series SIH

  • radial type electrolytic capacitors
  • with snap-in connections and a long service life (5000h at 105°C)
  • all internal contacts are welded
  • operating temperature: -40 to +105°C
  • maximal leakage current: 378µA
  • capacitance tolerance: ±20%
  • pitch: 10mm
  • bulk
series SIH by FTCAP

SIH22206325030

108410 SIH22206325030 SIH22206325030 FTCAP capacitor series SIH. radial type electrolytic capacitors with snap-in connections and a long service life (5000h at 105°C) all internal contacts are welded operating temperature: -40 to +105°C maximal leakage current: 378µA capacitance tolerance: ±20% pitch: 10mm bulk

Specifications

manufacturer
Manufacturer's name SIH22206325030
Nominal voltage [V DC] 63
Impedance [mΩ] 52
Ripple current (105°C, 100Hz) [A] 2
Loss factor at 100Hz, 20°C [%] 9
Capacity [µF] 2200
D x L [mm] 25x30
Data Sheet

Unit price

6,79 €

Stock: 0
Further delivery:
CW 10/2026

Minimum order quantity 500 units or
multiples of 500.
