FTR-C1GA012G-B05

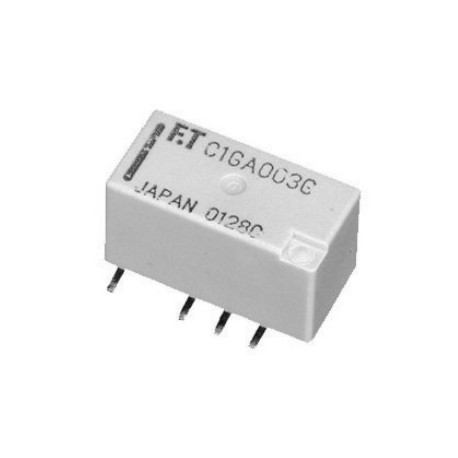

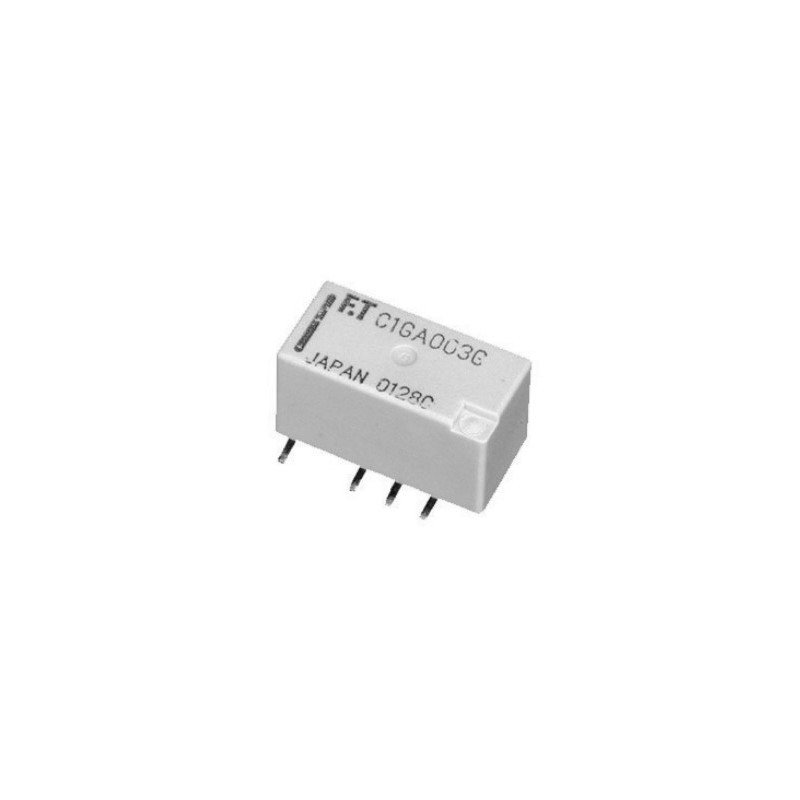

Fujitsu SMD PCB relay series FTR-C1

  • two-pole relays in a plastic sealed case (RT III)
  • with 2 changeover contacts (gold-plated), a high insulation, a big contact gap (0,6mm) and a low power consumption
  • comply with IEC60950, EN60950, UL1950 and CSA C 22.2 no. 950 operating voltage 250V
  • dielectric strength of 3000V AC between contacts and coil
  • suitable for direct PCB mounting (SMD)
  • contact material: AgPd
  • switching current: 2A
FTR-C1GA012G-B05, Fujitsu SMD PCB relays, 2A, 2 changeover contacts, FTR-C1 series

FTR-C1GA012G-B05

156025 FTR-C1GA012G-B05 FTR-C1GA012G-B05 Fujitsu SMD PCB relay series FTR-C1. two-pole relays in a plastic sealed case (RT III) with 2 changeover contacts (gold-plated), a high insulation, a big contact gap (0,6mm) and a low power consumption comply with IEC60950, EN60950, UL1950 and CSA C 22.2 no. 950 operating voltage 250V dielectric strength of 3000V AC between contacts and coil suitable for direct PCB mounting (SMD) contact material: AgPd switching current: 2A

Specifications

manufacturer
Manufacturer's name FTR-C1GA012G-B05
Coil resistance [Ω] 514
Switching current [A] 2
Response voltage [V] 9
Release voltage [V] 1,2
Nominal capacity [mW] 280
Data Sheet

Unit price

1,09 €

Stock: 500
Further delivery:
CW 38/2024

Minimum order quantity 10 units or
multiples of 10.
