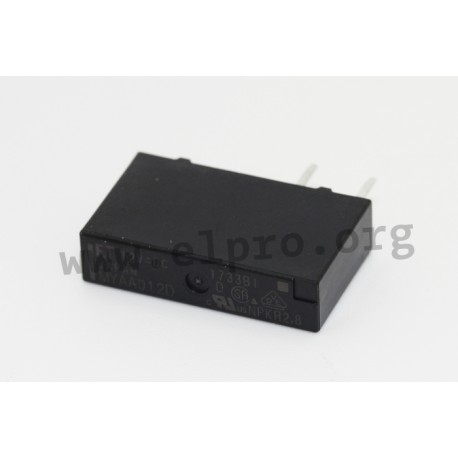

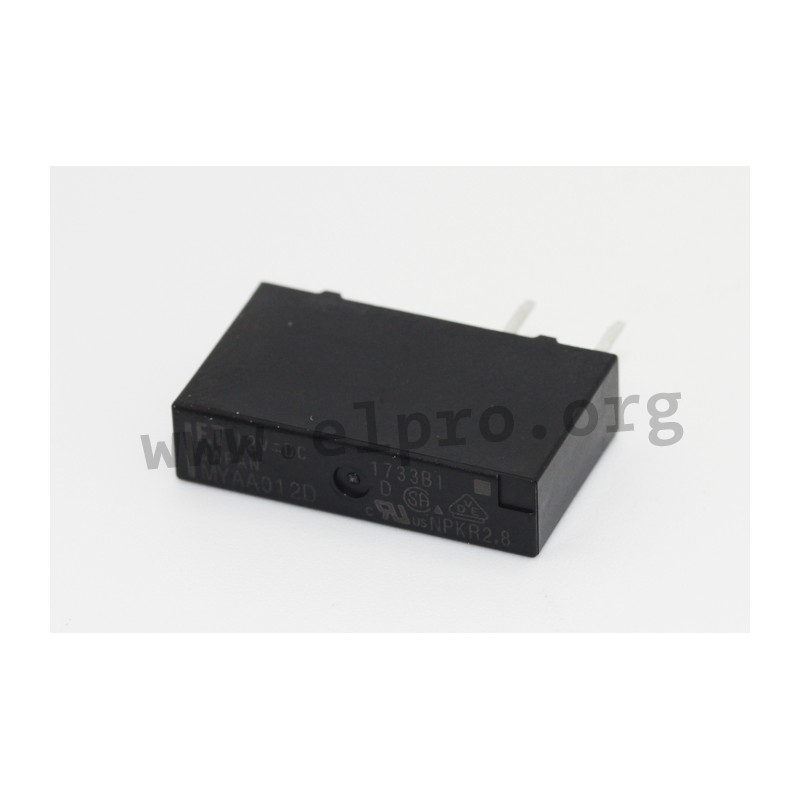

FTR-MYAA012D

FUJITSU PCB relays series FTR-MY

This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. We are offering the following types by FUJITSU: FTR-MYAA005D, FTR-MYAA012D and FTR-MYAA024D.

• contact: SPST-NO
• contact material: gold overlay AgNi
• rated switching current: 5A
• max. switching voltage: 277V AC / 125V DC
• max. switching power: 1250VA / 150W
• creepage/clearance: 10/5ms
• operate/release time:
• testing voltage 3000V AC
• coil/contact (1min.): 750V AC
• open contact (1min.):
• min. lifetime 20x106 operations
• mechanical: 50x103 operations
• electrical: -40 to +90°C
• operating temperature: 2.5g
• weight approx.: 2.5g

FTR-MYAA012D

109528 FTR-MYAA012D FTR-MYAA012D FUJITSU PCB relays series FTR-MY. This slim type with 5mm width is characterized by a high switching current (5A). Their contacts are gold overlay (AgNi) and cadmium free. These relays have a wash tight construction which conforms to RTIII. We are offering the following types by FUJITSU: FTR-MYAA005D, FTR-MYAA012D and FTR-MYAA024D.• contact: SPST-NO• contact material: gold overlay AgNi• rated switching current: 5A• max. switching voltage: 277V AC / 125V DC• max. switching power: 1250VA / 150W• creepage/clearance: 10/5ms• operate/release time:• testing voltage 3000V AC• coil/contact (1min.): 750V AC• open contact (1min.):• min. lifetime 20x106 operations• mechanical: 50x103 operations• electrical: -40 to +90°C• operating temperature: 2.5g• weight approx.: 2.5g

Specifications

manufacturer
Manufacturer's name FTR-MYAA012D
Nominal voltage [V DC] 12
Coil resistance [Ω] 1310
Data Sheet

Unit price

1,27 €

Stock: 830
Further delivery:
CW 34/2024

Minimum order quantity 10 units or
multiples of 10.
