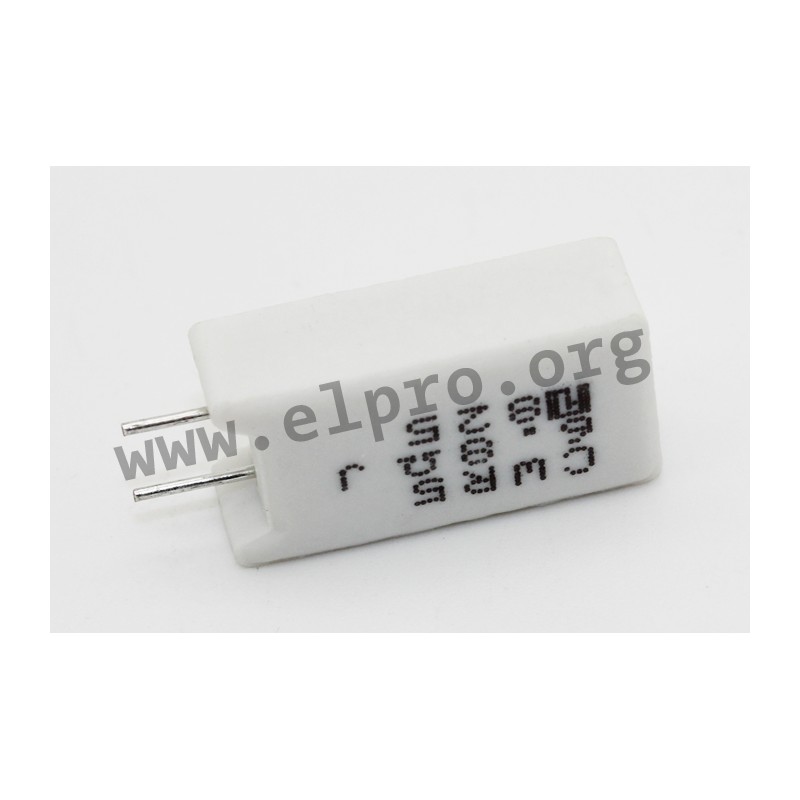

CWR2 4R7 J

Fukushima Futaba wire resistor series CWR

  • resistors in a miniature design thanks to a special ceramic
  • low ohms due to special alloys
  • non-inflammable
  • with a good long-term stability through a high vacuum coating
  • operating temperature: -25 to +155°C
  • insulation resistance: 10MOhm
  • resistance tolerance: ±5%

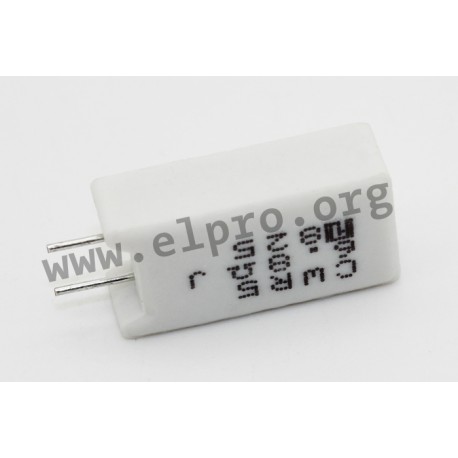

CWR2 4R7 J,Fukushima Futaba wire resistors, 5%, 2 to 5W, CWR series View larger

CWR2 4R7 J

140689 CWR2 4R7 J CWR2 4R7 J Fukushima Futaba wire resistor series CWR. resistors in a miniature design thanks to a special ceramic low ohms due to special alloys non-inflammable with a good long-term stability through a high vacuum coating operating temperature: -25 to +155°C insulation resistance: 10MOhm resistance tolerance: ±5%

Data sheet

manufacturer
manufacturer's name CWR2 4R7 J
resistance tolerance [%] 5
resistance [Ω] 4,7
power [W] 2

Download

Data Sheet

2,59 €

Volume discounts

10 pcs. / 0,698 €

stock: 200
