87 P 302T1A 02

pin headers

• pin header for plugs with female contacts
• straight version for PCB mounting
• pitch: 3mm
• housing material: nylon 46, black
• flammability class: UL94V-0
• current rating, max.: 5A
• rated voltage: 250V AC/DC
• contact material: copper alloy
• contact surface: tinned
• temperature range: -25...+105°C

87 P 302T1A 02

33972 87 P 302T1A 02 87 P 302T1A 02 pin headers. • pin header for plugs with female contacts• straight version for PCB mounting• pitch: 3mm• housing material: nylon 46, black• flammability class: UL94V-0• current rating, max.: 5A• rated voltage: 250V AC/DC• contact material: copper alloy• contact surface: tinned• temperature range: -25...+105°C

Discontinued items. Only remainder of stock available.

Specifications

Number of poles 2x1

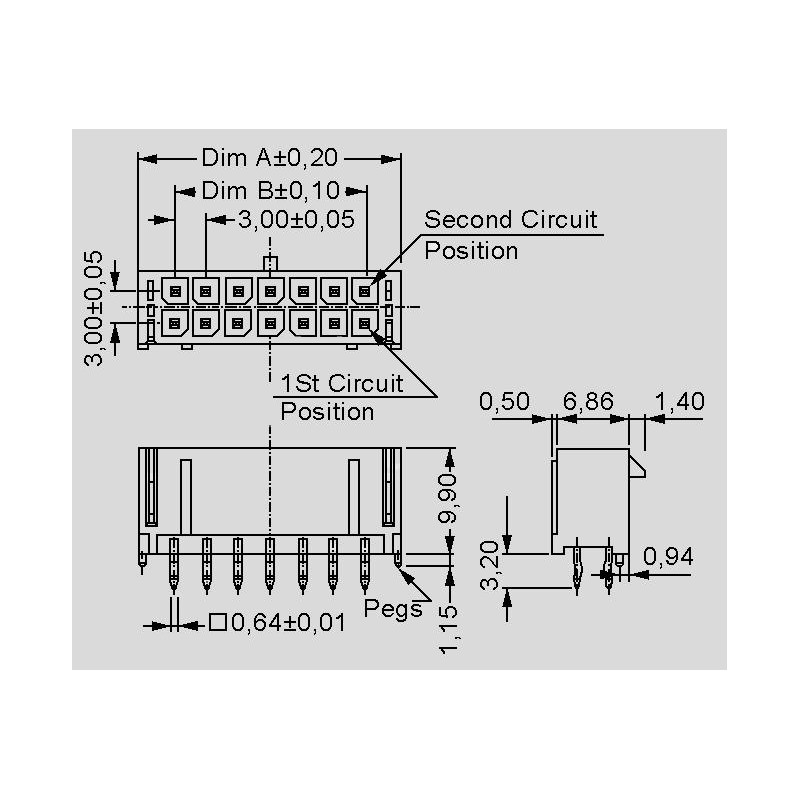

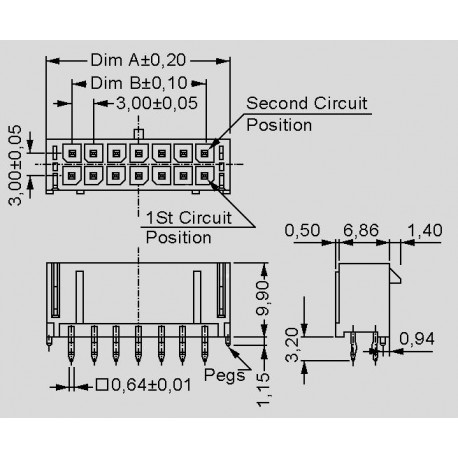

A [mm] 6,7
Data Sheet

Unit price

0,09 €

Stock: 5
