> Passive elements>Connectors>PCB plug-in connectors>GSN pin headers, angled, 3,00mm, 87P series>87 P 301T9A 04

Manufacturers

87 P 301T9A 04

pin headers, 90° angled

• pin header for plugs with female contacts
• angled version for PCB mounting
• pitch: 3mm
• housing material: Nylon 46, schwarz
• flammability class: UL94V-0
• current rating, max.: 5A
• rated voltage: 250V AC/DC
• contact material: copper alloy
• contact surface: tinned
• temperature range: -25...+105°C

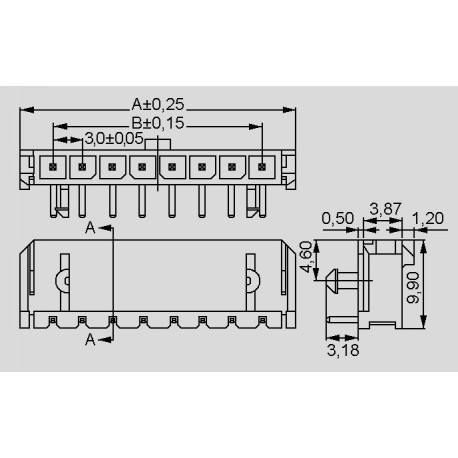

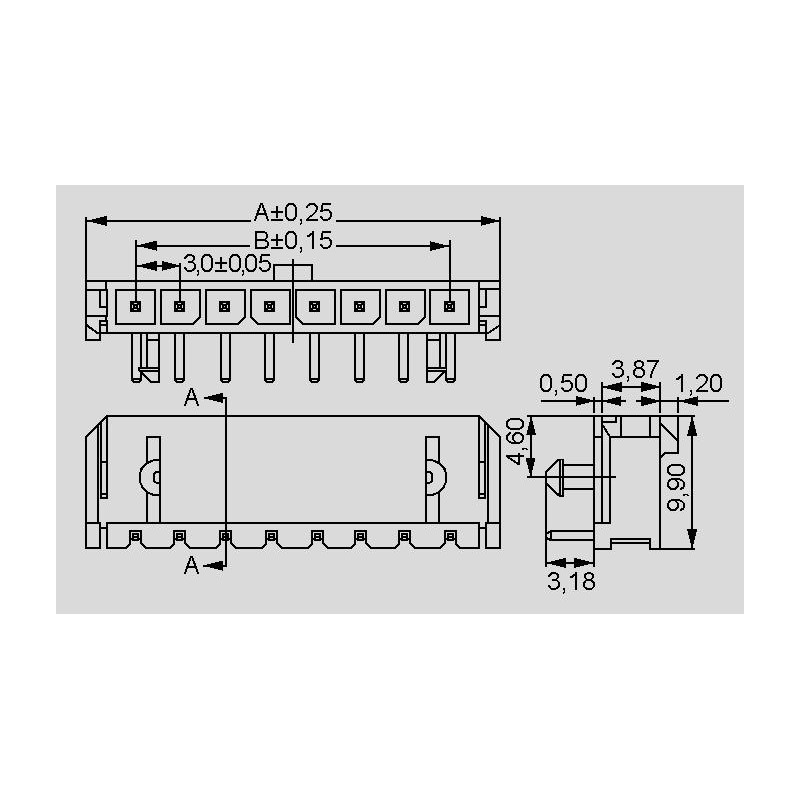

dimensions 87 P 301T9A 10

87 P 301T9A 04

33974 87 P 301T9A 04 87 P 301T9A 04 pin headers, 90° angled. • pin header for plugs with female contacts• angled version for PCB mounting• pitch: 3mm• housing material: Nylon 46, schwarz• flammability class: UL94V-0• current rating, max.: 5A• rated voltage: 250V AC/DC• contact material: copper alloy• contact surface: tinned• temperature range: -25...+105°C

Discontinued items. Only remainder of stock available.

Specifications

Number of poles 1x4
A [mm] 9
Width [mm] 15,65
Data Sheet

Unit price

0,10 €

Stock: 5
