L01-6217

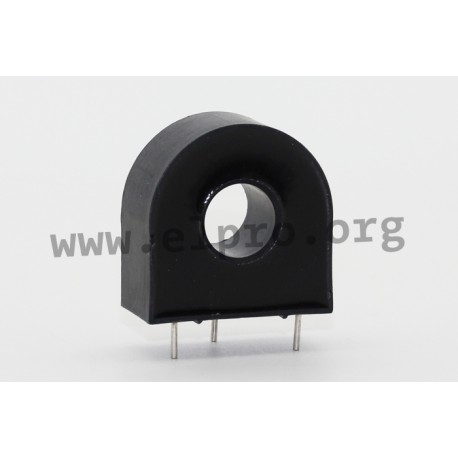

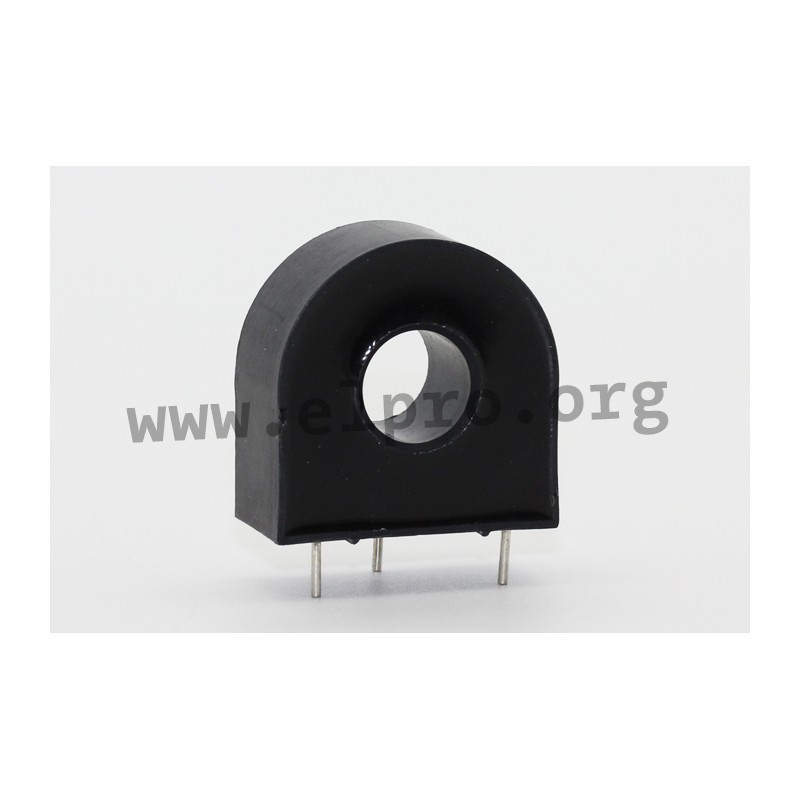

GT Elektronik current transformer series 620, 621, 622 and 62

Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

L01-6217, current transformers 20200kHz, for 50/60Hz, 62xx series

L01-6217

112667 L01-6217 L01-6217 GT Elektronik current transformer series 620, 621, 622 and 62. Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

Specifications

manufacturer
Manufacturer's name L01-6217
Turns ratio 1000:1
Rated input current [A] 50
Data Sheet

Unit price

2,49 €

Stock: 144
Further delivery:
CW 34/2025

Minimum order quantity 6 units or
multiples of 6.
