L01-6220

GT Elektronik current transformer series 620, 621, 622 and 62

Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

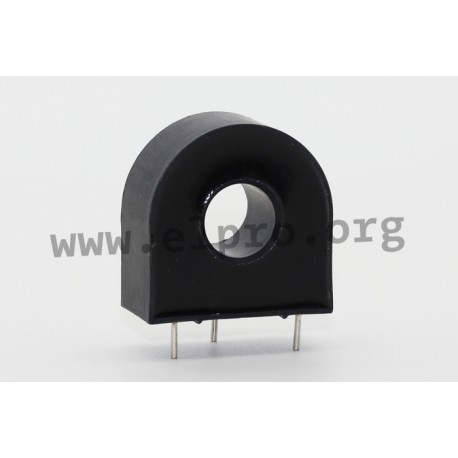

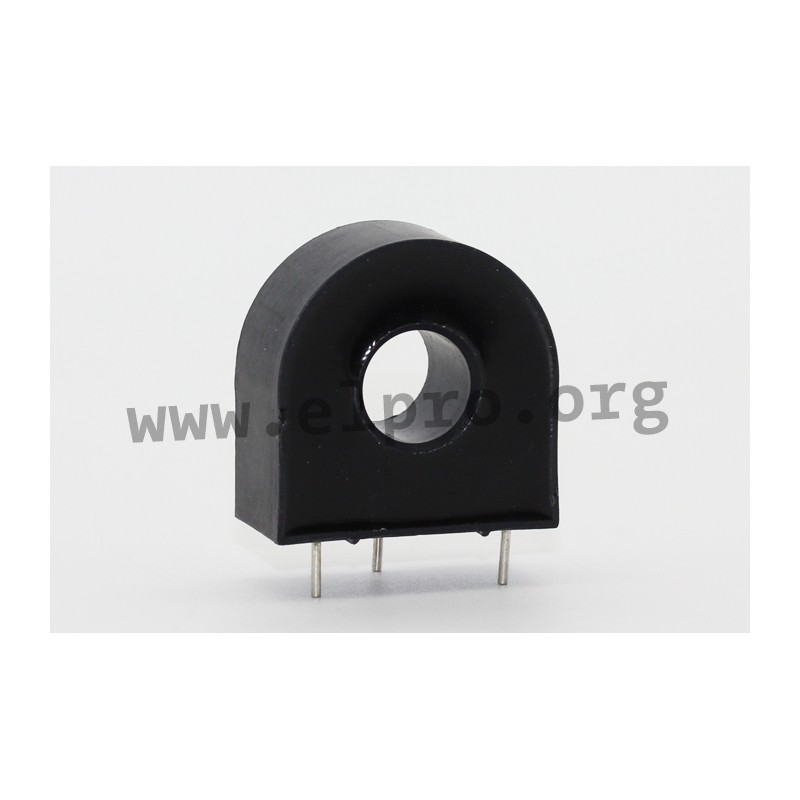

L01-6220, current transformers 20200kHz, for 50/60Hz, 62xx series

L01-6220

112670 L01-6220 L01-6220 GT Elektronik current transformer series 620, 621, 622 and 62. Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

Specifications

manufacturer
Manufacturer's name L01-6220
Turns ratio 1000:1
Rated input current [A] 100
Data Sheet

Unit price

3,59 €

Stock: 0
Further delivery:
CW 14/2026

Minimum order quantity 5 units or
multiples of 5.
