L01-6230

GT Elektronik current transformer series 620, 621, 622 and 62

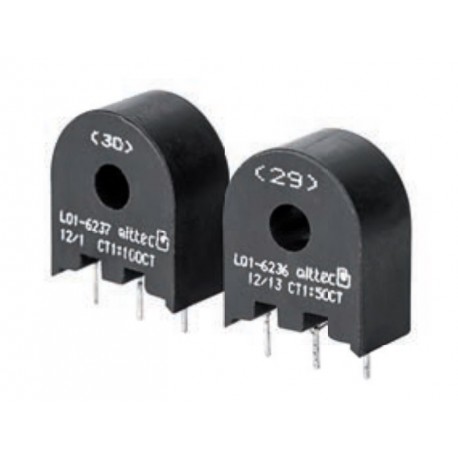

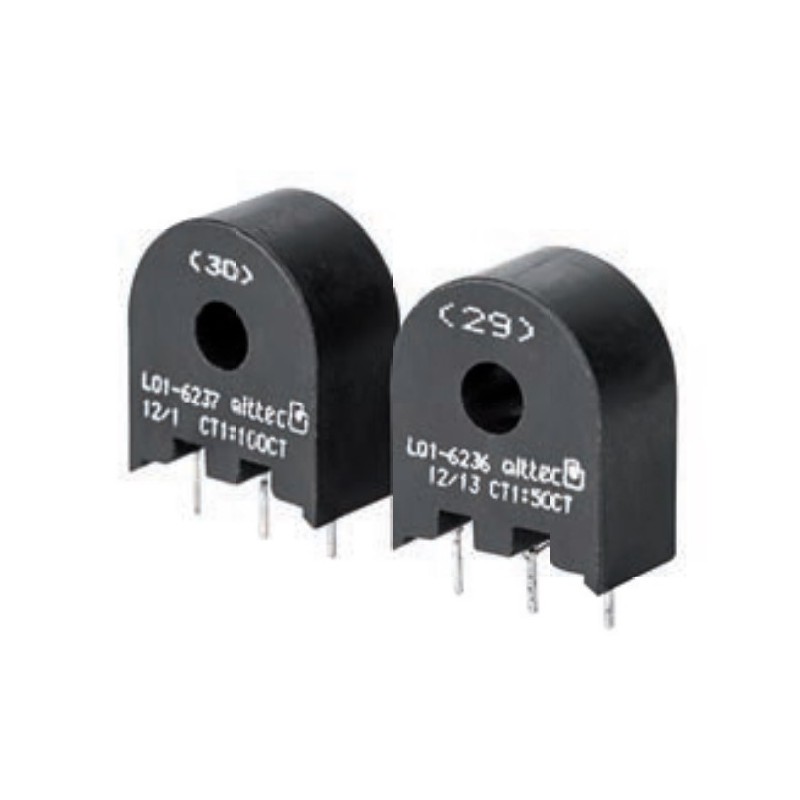

Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

GT Elektronik 62 series

L01-6230

112673 L01-6230 L01-6230 GT Elektronik current transformer series 620, 621, 622 and 62. Current transformers in a plastic case with a centerhole for a current-carrying wire. By increasing the number of the primary turns the measurement accuracy can be improved. These devices with an operating temperature range of -40°C to +120°C are fully potted and suited for PCB mounting. They have a current range of 1A to 200A and a tolerance of ±10%, the models of the series 62 have a secondary current of 30mA to 300mA.

Specifications

manufacturer
Manufacturer's name L01-6230
Secondary current [mA] 300
Turns ratio 1:50
Data Sheet

Unit price

1,06 €

Stock: 475
Further delivery:
CW 34/2025

Minimum order quantity 5 units or
multiples of 5.
