BV EI 542 1157

Hahn PCB transformers

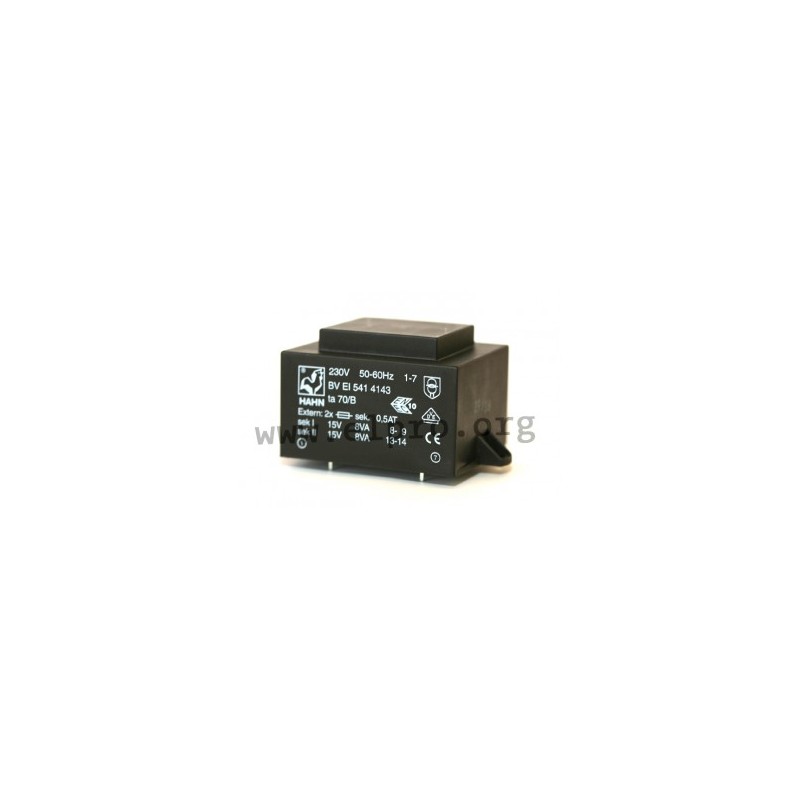

Transformers with an EI54 core and 16VA. These components are not short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are vacuum casted. We offer the type BV EI 541 4140 of this Hahn series.

  • core: EI 54
  • output: 16VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV

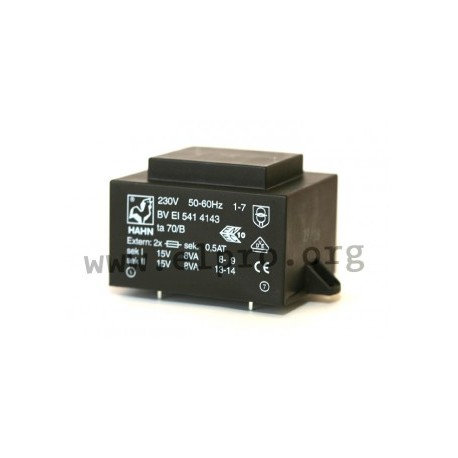

BVEI5421157, Hahn PCB transformers, 16VA, EI 54

BV EI 542 1157

249833 BV EI 542 1157 BVEI5421157 BVEI5421157 Hahn PCB transformers. Transformers with an EI54 core and 16VA. These components are not short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting and are vacuum casted. We offer the type BV EI 541 4140 of this Hahn series. core: EI 54 output: 16VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B maximal end temperature: 120°C permissible overtemperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI5421157
Secondary voltage [V] 1x12
Secondary current [A] 1x1667

Unit price

20,89 €

Stock: 0
Further delivery:
CW 01/2026

Minimum order quantity 14 units or
multiples of 14.
