BV EI 302 2001

Hahn PCB transformers

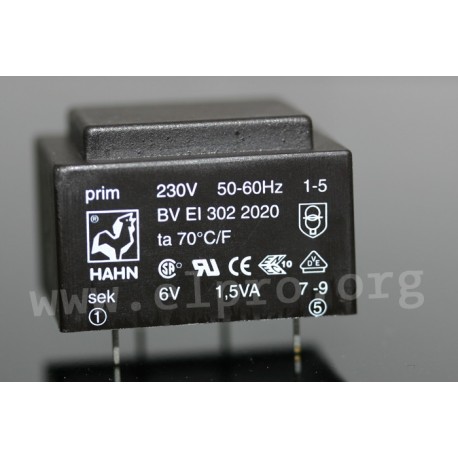

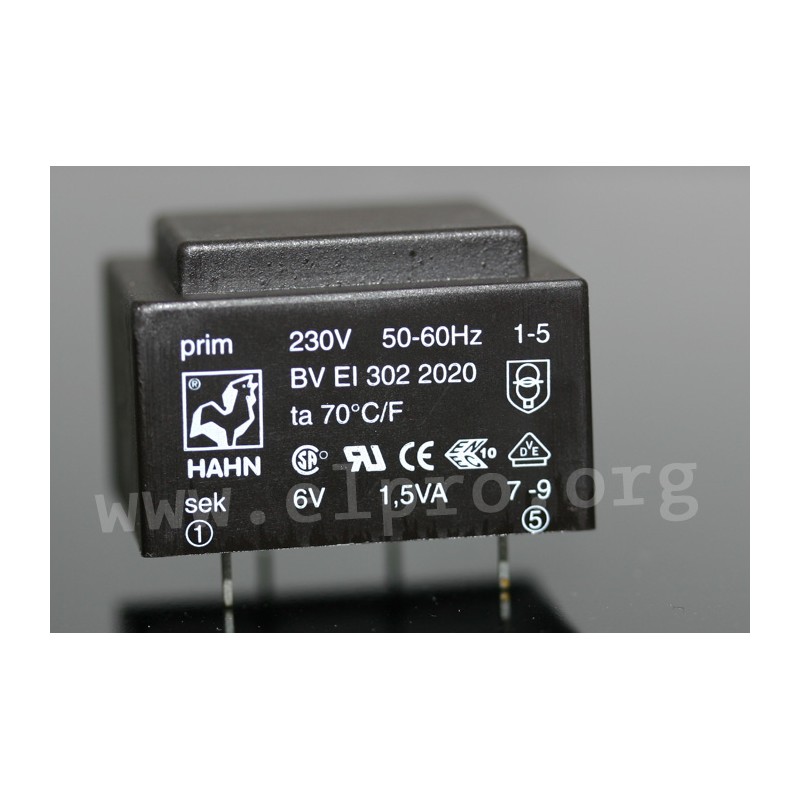

Transformers with 1,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/F and are vacuum casted. We offer the type BV EI 302 2001 of this Hahn series.

  • core: EI 30
  • output: 1,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 190°C
  • maximal end temperature: 140°C
  • permissible overtemperature: 70K
  • test voltage: 4kV
BV EI 302

BV EI 302 2001

111643 BV EI 302 2001 BVEI3022001 BVEI3022001 Hahn PCB transformers. Transformers with 1,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/F and are vacuum casted. We offer the type BV EI 302 2001 of this Hahn series. core: EI 30 output: 1,8VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/F maximal end temperature (short circuit): 190°C maximal end temperature: 140°C permissible overtemperature: 70K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI3022001
Secondary voltage [V] 9
Secondary current [A] 0,2
Data Sheet

Unit price

2,49 €

Stock: 35
Further delivery:
CW 01/2026

Minimum order quantity 5 units or
multiples of 5.
