BV EI 422 1285

Hahn PCB transformers

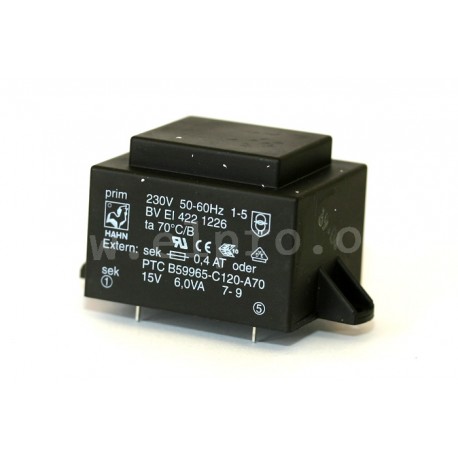

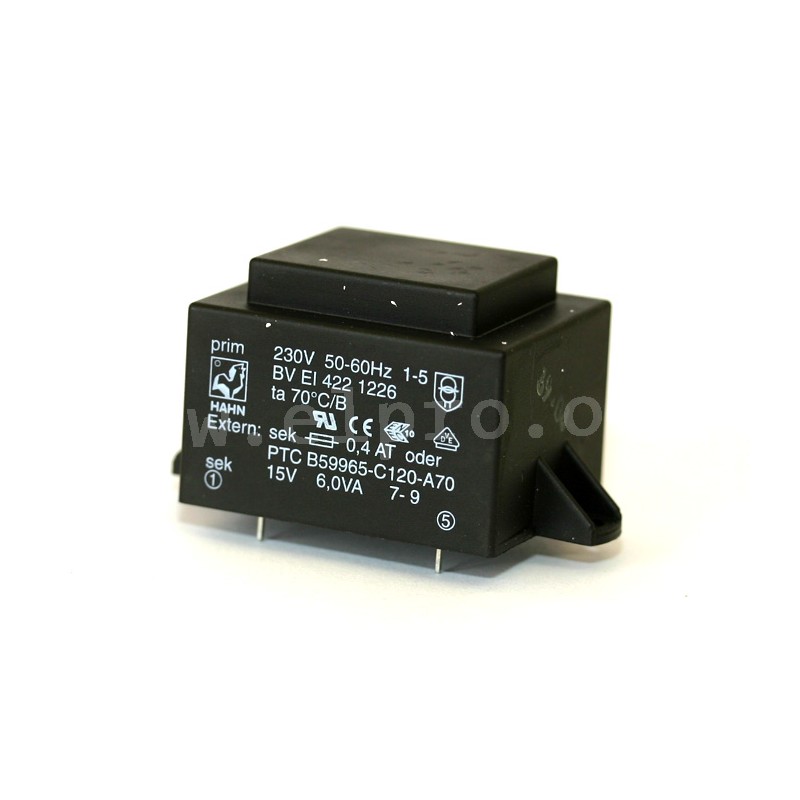

Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285.

  • core: EI 42
  • output: 6VA
  • input voltage: 230V AC
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV
BV EI 422_

BV EI 422 1285

111664 BV EI 422 1285 BVEI4221285 BVEI4221285 Hahn PCB transformers. Transformers with 6VA and an EI42 core. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B and are vacuum casted. We offer the following types of this Hahn series: BV EI 422 1222, BV EI 422 1224, BV EI 422 1226, BV EI 422 1223, BV EI 422 1225, BV EI 422 1227 and BV EI 422 1285. core: EI 42 output: 6VA input voltage: 230V AC temperature class: Ta 70/B maximal end temperature: 120°C permissible overtemperature: 50K test voltage: 4kV

Specifications

manufacturer
Manufacturer's name BVEI4221285
Secondary voltage [V] 2x12
Secondary current [A] 0,667
Data Sheet

Unit price

10,39 €

Stock: 0
Further delivery:
CW 01/2026

Minimum order quantity 30 units or
multiples of 30.
