HNP06I-MICROUSBL6

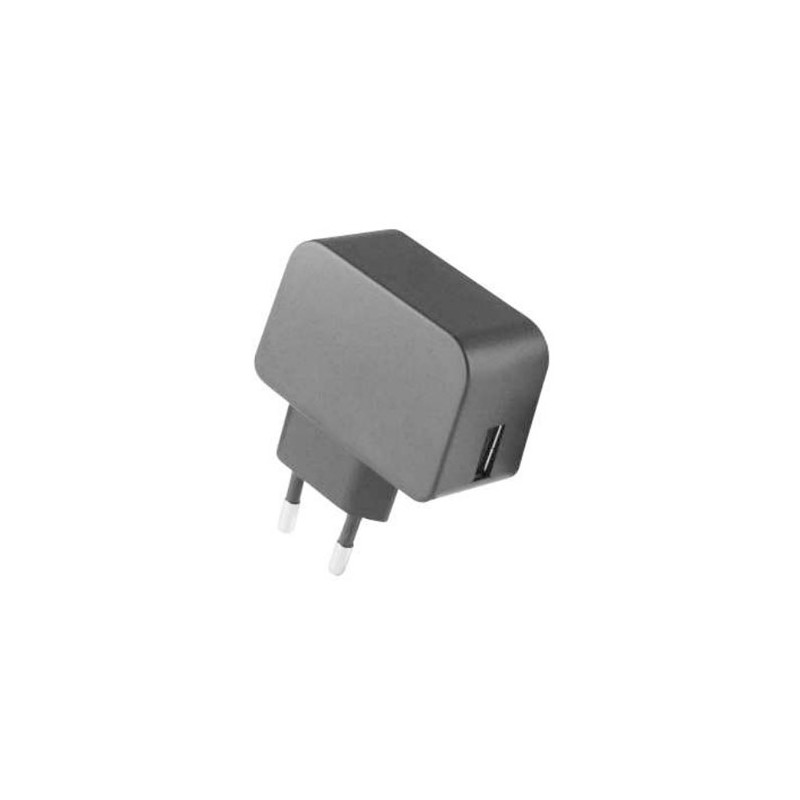

HN-Power plug-in power supply series HNP06I-USB

Plug-in switching power supplies with 7,5W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55032, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the type HNP06I-MICROUSBL6 of this HN-Power series.

  • single output
  • output: 7,5W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • no-load power: <0,075W
  • output plug: micro USB type A
  • cable length: 1,5m
  • operating temperature: -10 to +40°C
  • dimensions: 56x27x73mm
  • weight: 67g

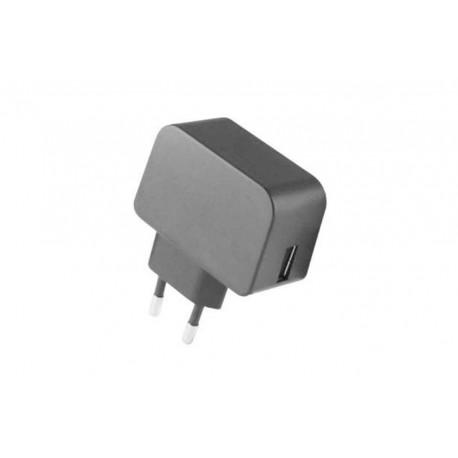

HNP06I-MICROUSBL6, HN-Power USB plug-in switching power supplies, 7,5W, HNP06I-USB series

HNP06I-MICROUSBL6

241844 HNP06I-MICROUSBL6 HNP06I-MICROUSBL6 HN-Power plug-in power supply series HNP06I-USB. Plug-in switching power supplies with 7,5W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power. These devices are protected against overload as well as short circuit and comply with EN62368-1, EN55032, EN55035, EN61000-3-2 as well as EN61000-3-3. We offer the type HNP06I-MICROUSBL6 of this HN-Power series. single output output: 7,5W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 30A no-load power: &lt;0,075W output plug: micro USB type A cable length: 1,5m operating temperature: -10 to +40°C dimensions: 56x27x73mm weight: 67g

Specifications

manufacturer
Manufacturer's name HNP06I-MICROUSBL6
Output voltage [V] 5
Efficiency [%] DOE VI
Output current range [A] 0...1,5
Output power [W] 7,5
Ripple [mVp-p] 100
Data Sheet

Unit price

9,19 €

Stock: 48
Further delivery:
CW 17/2026
