Manufacturers

HNP18I-240V2

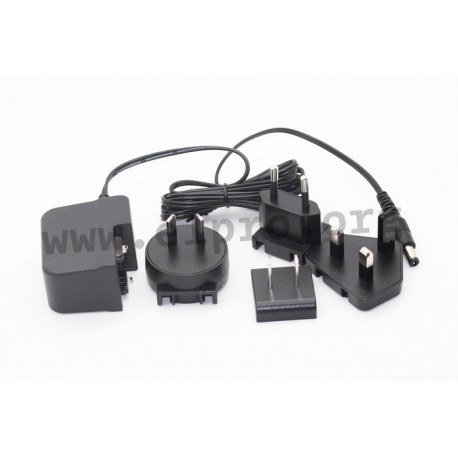

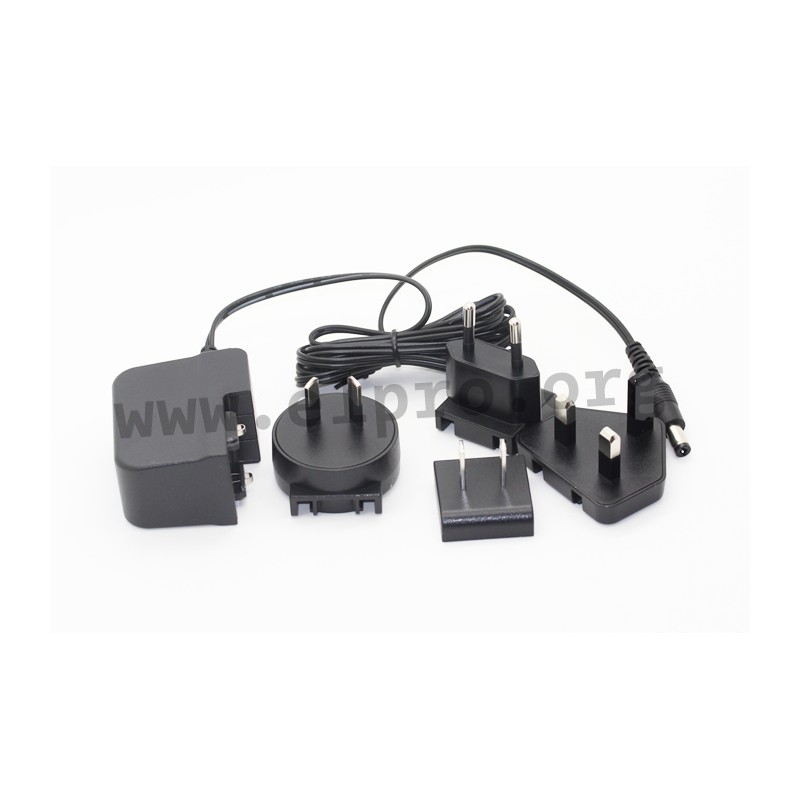

HN-Power plug-in power supply series HNP18I-V2

Plug-in switching power supplies with 18W, a universal input, protection class II and energy efficiency Level VI (EU 2019/1782). These devices have four interchangeable AC plug adapters (EU/US/UK/AU) and are protected against short circuit, overvoltage as well as overload. They are suitable for indoor applications and comply with EN62368-1, UL62368-1 as well as EN55032. We offer the following types of this HN-Power series: HNP18I-050V2, HNP18I-090V2, HNP18I-120V2 and HNP18I-240V2.

  • single output
  • output: 18W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 30A
  • input current: 0,45A
  • leakage current: 0,25mA
  • withstand voltage: 3000V
  • output plug: coaxial 2,1x5,5mm
  • cable length HNP18I-050V2: 100cm
  • cable length HNP18I-_: 150cm
  • operating temperature: -10 to +40°C
  • dimensions: 56x27x73mm
  • weight: 80g

HNP18I-240V2

236085 HNP18I-240V2 HNP18I-240V2 HN-Power plug-in power supply series HNP18I-V2. Plug-in switching power supplies with 18W, a universal input, protection class II and energy efficiency Level VI (EU 2019/1782). These devices have four interchangeable AC plug adapters (EU/US/UK/AU) and are protected against short circuit, overvoltage as well as overload. They are suitable for indoor applications and comply with EN62368-1, UL62368-1 as well as EN55032. We offer the following types of this HN-Power series: HNP18I-050V2, HNP18I-090V2, HNP18I-120V2 and HNP18I-240V2. single output output: 18W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 30A input current: 0,45A leakage current: 0,25mA withstand voltage: 3000V output plug: coaxial 2,1x5,5mm cable length HNP18I-050V2: 100cm cable length HNP18I-_: 150cm operating temperature: -10 to +40°C dimensions: 56x27x73mm weight: 80g

Specifications

manufacturer
Manufacturer's name HNP18I-240V2
Output voltage [V] 24
Output current [A] 0,75
Output power [W] 18
Ripple [mVp-p] 100
Data Sheet

Unit price

12,59 €

Stock: 15
Further delivery:
CW 35/2024
