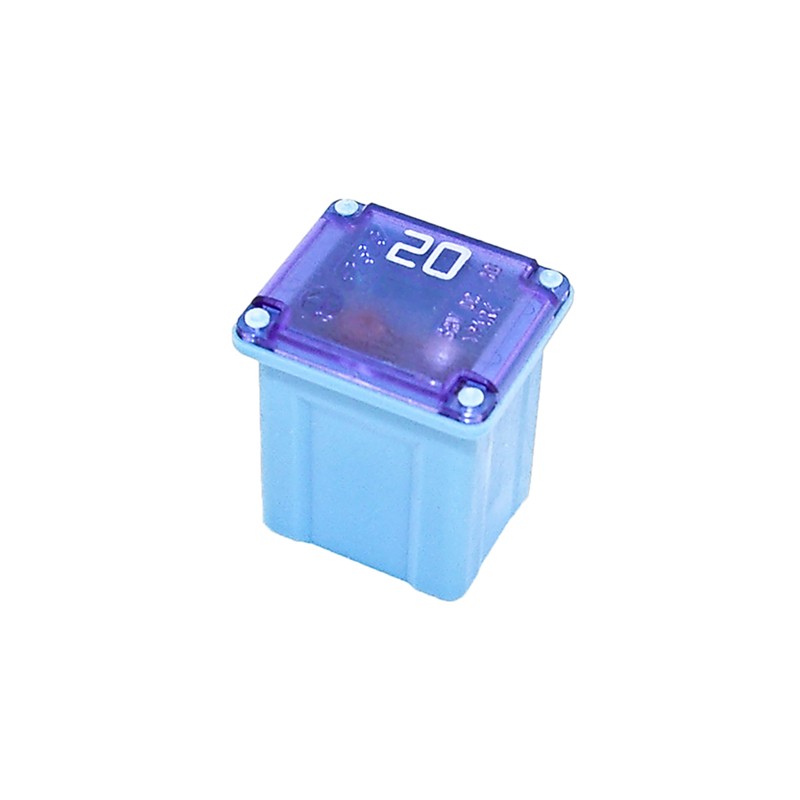

L020JLP

iMaXX Automotive fuses series L-JLP

Automotive fuses in self extinguishing, color coded body materials and for plug connection. They enable a element visibility from top through transparent cover and meets international specs, complies to ISO 8820-4, JASO D612 and other standards. These fuses have integrated, endurable, Cu-alloy receptacles. We offer the following types of this iMaXX series: L020JLP, L025JLP, L030JLP, L040JLP, L050JLP und L060JLP.

  • rated voltage: 58V DC
  • rated current: 20 to 60A
  • colour: blue, white, pink, green, red, yellow
  • dimensions: 12,1x10x15,9mm

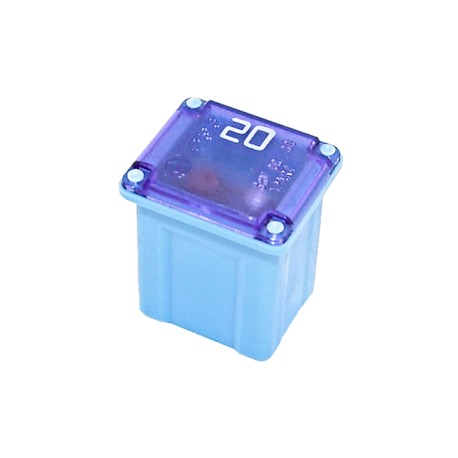

, iMaXX Automotive fuses, 58V DC, japOTO, plug connection, L-JLP series

L020JLP

253600 L020JLP L020JLP iMaXX Automotive fuses series L-JLP. Automotive fuses in self extinguishing, color coded body materials and for plug connection. They enable a element visibility from top through transparent cover and meets international specs, complies to ISO 8820-4, JASO D612 and other standards. These fuses have integrated, endurable, Cu-alloy receptacles. We offer the following types of this iMaXX series: L020JLP, L025JLP, L030JLP, L040JLP, L050JLP und L060JLP. rated voltage: 58V DC rated current: 20 to 60A colour: blue, white, pink, green, red, yellow dimensions: 12,1x10x15,9mm

Specifications

manufacturer
Manufacturer's name L020JLP
Colour blue
Rated current [A] 20
Data Sheet

Unit price

0,583 €

Stock: 100
Further delivery:
CW 52/2025

Minimum order quantity 10 units or
multiples of 10.
