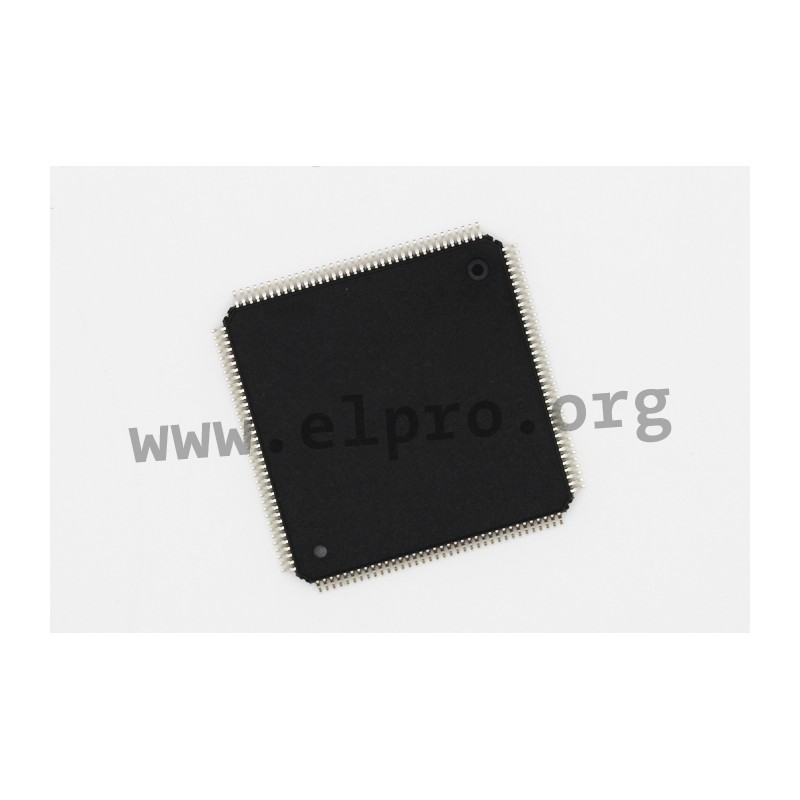

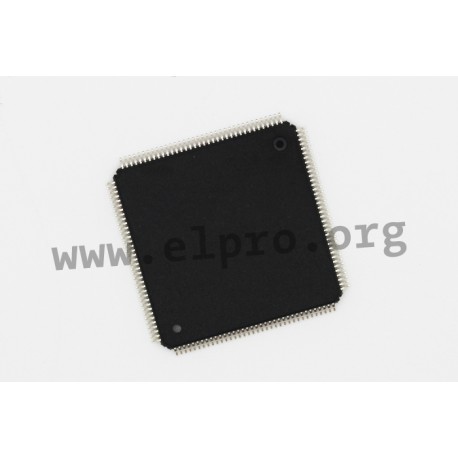

EP3C5E144C8N

Intel FPGA series Cyclone® III

  • field-programmable gate arrays in a LQFP, PQFP or BGA housing
  • with a low standby power thanks to TSMCs low-power process technology
  • 256-bit AES encryption
  • support DDR, DDR2, SDR SDRAM and QDRII SRAM
  • up to 346 I/O pins
EP3C5E144C8N

EP3C5E144C8N

113836 EP3C5E144C8N EP3C5E144C8N Intel FPGA series Cyclone® III. field-programmable gate arrays in a LQFP, PQFP or BGA housing with a low standby power thanks to TSMCs low-power process technology 256-bit AES encryption support DDR, DDR2, SDR SDRAM and QDRII SRAM up to 346 I/O pins

Specifications

manufacturer
Manufacturer's name EP3C5E144C8N
Case LQFP144
18 x 18 multipliers 23
LABs 321
Logic cells 5136
User I/O, max. 94
Data Sheet

Unit price

39,59 €

Stock: 30
Further delivery:
CW 26/2024

Minimum order quantity 5 units or
multiples of 5.
