796_15_48_sw

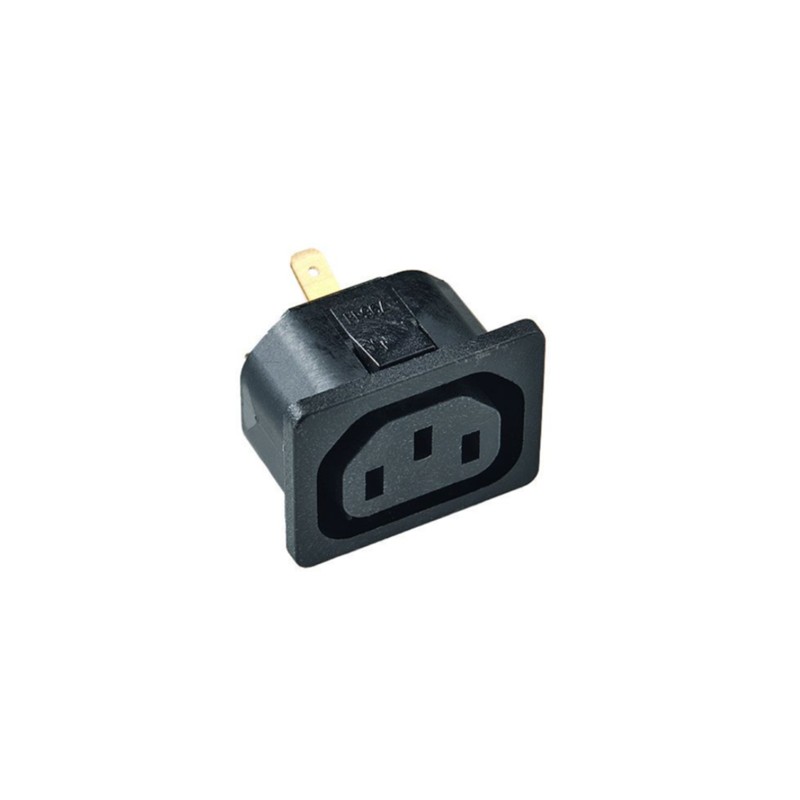

Kaiser Built-in cold appliance plug series 796

Built-in cold appliance plugs made of Polyamid (PA) 6 and equipped with snap-in or screw (796/SW) fastening. These black plugs  have a brass input and a straight alignment. We offer the following types of this Kaiser series: 796/10/48/SW, 796/10/63/SW, 796/15/48/SW, 796/15/63/SW, 796/20/48/SW, 796/20/63/SW, 796/48/SW, 796/63/SW, and 796/SW.

  • rated voltage: 250V AC
  • rated current: 10A
  • dimensions: 36x33,9x28mm, resp. 50x33,9x28mm (796/48/SW, 796/63/SW, 796/SW)
  • weight: 14g, resp. 16g (796/48/SW, 796/63/SW, 796/SW)
  • faston terminal: 6,3mm (796/_/63/SW) or 4,8mm (796/_/48/SW)
  • operating temperature: -5 to 40°C

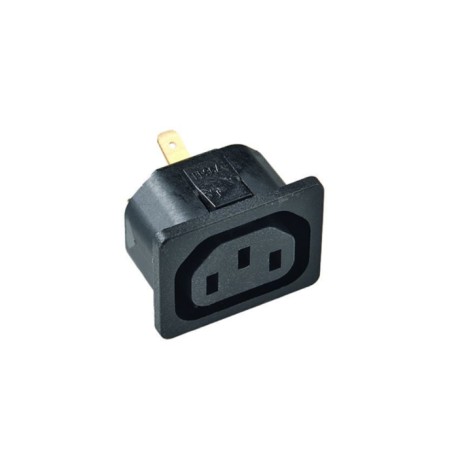

796/15/48/SW, Kaiser Built-in cold appliance plug, 70°C, straight, 796 series

796_15_48_sw

253699 796_15_48_sw 796/15/48/SW 796/15/48/SW Kaiser Built-in cold appliance plug series 796. Built-in cold appliance plugs made of Polyamid (PA) 6 and equipped with snap-in or screw (796/SW) fastening. These black plugs  have a brass input and a straight alignment. We offer the following types of this Kaiser series: 796/10/48/SW, 796/10/63/SW, 796/15/48/SW, 796/15/63/SW, 796/20/48/SW, 796/20/63/SW, 796/48/SW, 796/63/SW, and 796/SW. rated voltage: 250V AC rated current: 10A dimensions: 36x33,9x28mm, resp. 50x33,9x28mm (796/48/SW, 796/63/SW, 796/SW) weight: 14g, resp. 16g (796/48/SW, 796/63/SW, 796/SW) faston terminal: 6,3mm (796/_/63/SW) or 4,8mm (796/_/48/SW) operating temperature: -5 to 40°C

Specifications

manufacturer
Manufacturer's name 796/15/48/SW
Pitch [mm] 1,5
Data Sheet

Unit price

1,09 €

Stock: 50
Further delivery:
CW 52/2025

Minimum order quantity 10 units or
multiples of 10.
