42R323114200

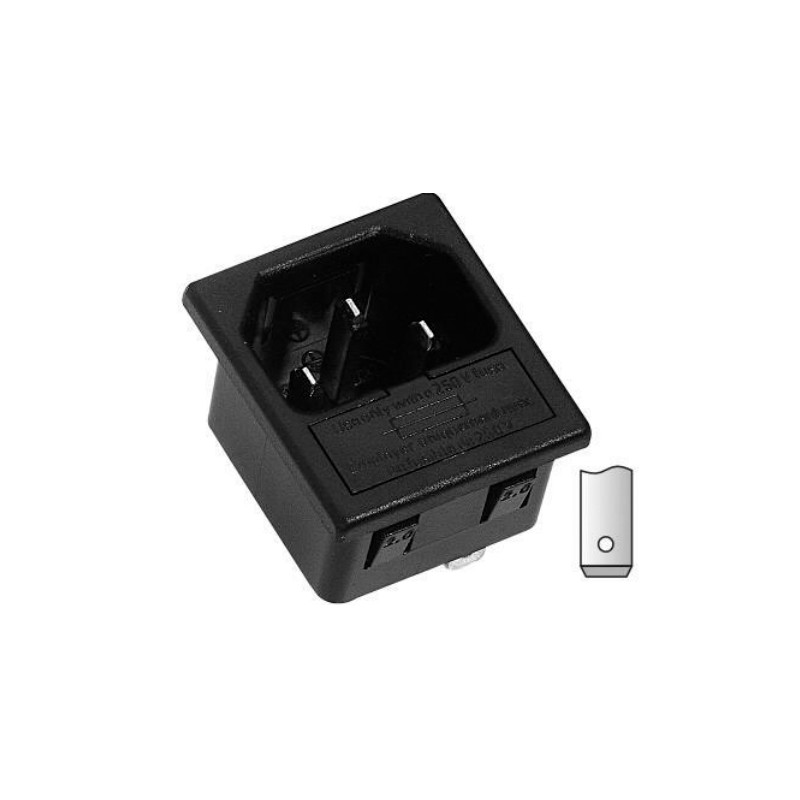

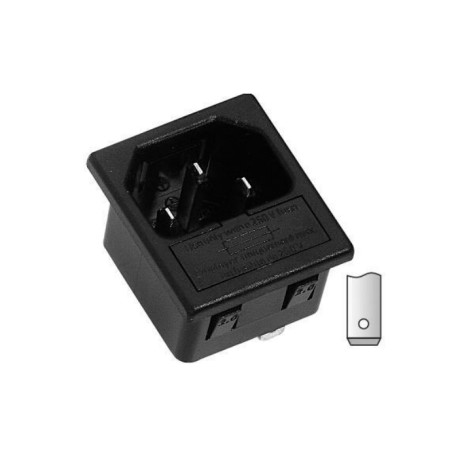

K+B IEC appliance inlets series 42R32

IEC appliance inlets (C14) in black with a fuse holder for a fuse link (5x20mm) and a tab terminal. They are suitable for screw mounting with longitudinal (42 R32 1_ / 36mm hole distance) or transversal flanges (42 R32 2_ / 39mm hole distance). We offer various types of this K+B series.

  • number of poles: 2+PE
  • continuous current: 10A
  • fuse holder: 6,3A
  • pin temperature: 70°C
  • rated voltage: 250V AC

42R323114200

253707 42R323114200 42R32.3114.200 42R32.3114.200 K+B IEC appliance inlets series 42R32. IEC appliance inlets (C14) in black with a fuse holder for a fuse link (5x20mm) and a tab terminal. They are suitable for screw mounting with longitudinal (42 R32 1_ / 36mm hole distance) or transversal flanges (42 R32 2_ / 39mm hole distance). We offer various types of this K+B series. number of poles: 2+PE continuous current: 10A fuse holder: 6,3A pin temperature: 70°C rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 42R32.3114.200
Data Sheet

Unit price

2,49 €

Stock: 900
Next incoming goods:
CW 51/2025
900 units


Further delivery:
CW 10/2026

Minimum order quantity 10 units or
multiples of 10.
