MKT RM7,5 630V 0,022µF

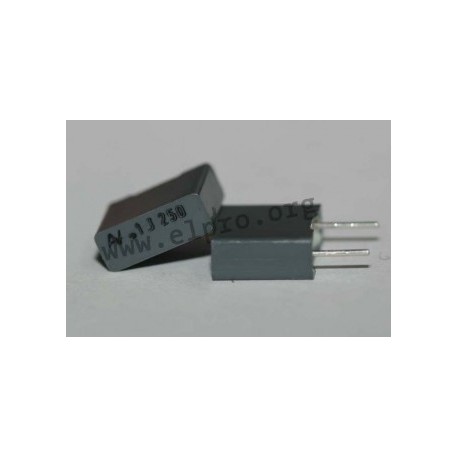

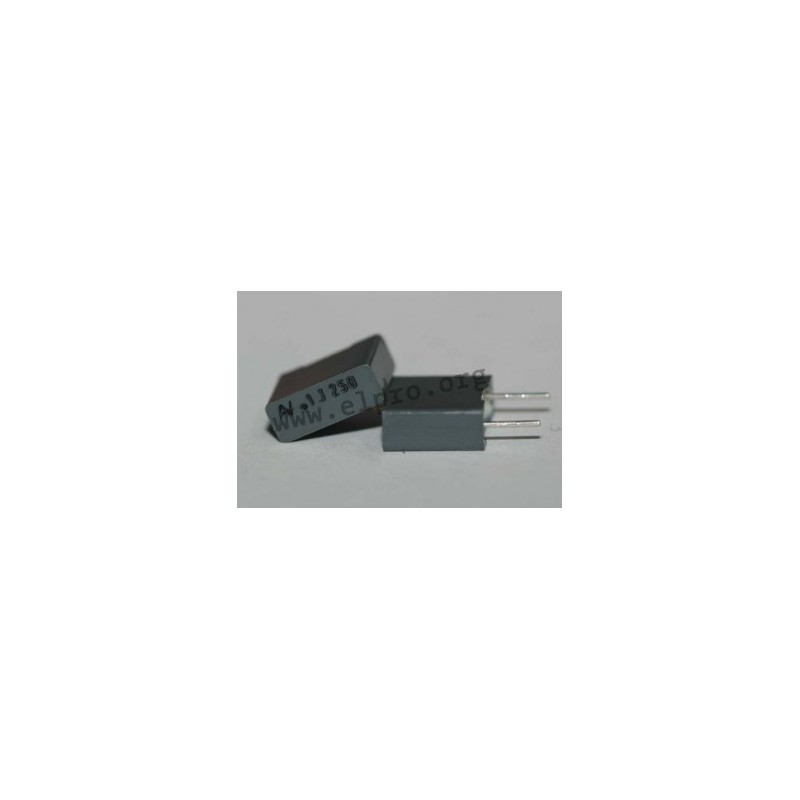

Kemet MKT capacitors series R.66

Loose MKT capacitors with a pitch of 7.5mm with dielectric polyester foil (Polyethylenterephthalat). They have a flame proof plastic housing (UL94V-0) with artificial resin and tin-plated connection terminals. We offer various types of this Kemet series.

  • tolerance: 5% and 10%
  • operating temperature: -55 to +105°C
R66PD2220AA7AK, Kemet MKT capacitors, pitch 7,5mm, R.66 series

MKT RM7,5 630V 0,022µF

28008 MKT RM7,5 630V 0,022µF R66PD2220AA7AK R66PD2220AA7AK Kemet MKT capacitors series R.66. Loose MKT capacitors with a pitch of 7.5mm with dielectric polyester foil (Polyethylenterephthalat). They have a flame proof plastic housing (UL94V-0) with artificial resin and tin-plated connection terminals. We offer various types of this Kemet series. tolerance: 5% and 10% operating temperature: -55 to +105°C

Specifications

manufacturer
Manufacturer's name R66PD2220AA7AK
Nominal voltage [V] 630
Pitch [mm] 7,5
Tolerance [%] 10
Capacity [pF] 22000
Data Sheet

Unit price

0,179 €

Stock: 2495
Further delivery:
CW 20/2026

Minimum order quantity 1 to 95 units or multiples of 100 plus 0 to 95 .
