LCD 3,5-13 +Sonderzeichen

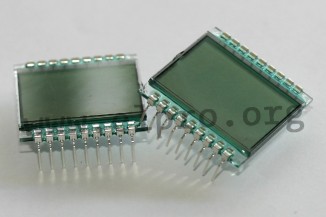

7-segment LCDs

  • 7-segment LCDs with a driving frequency of 30 to 100Hz
  • maximal power consumption: 2µA/cm²
  • maximal response time: 450ms
  • operating temperature: -20 to +70°C resp. -40 to +90°C

LCD 3,5-13 +Sonderzeichen DE114RS-20/6,35

LCD 3,5-13 +Sonderzeichen

28779 LCD 3,5-13 +Sonderzeichen DE114RS-20/6,35 DE114RS-20/6,35 7-segment LCDs. 7-segment LCDs with a driving frequency of 30 to 100Hz maximal power consumption: 2µA/cm² maximal response time: 450ms operating temperature: -20 to +70°C resp. -40 to +90°C

Specifications

manufacturer
Manufacturer's name DE114RS-20/6,35
Driving method static
Glass size 51x30
Digit height 12,7
Number of digits 3,5+4
Data Sheet

Unit price

3,59 €

Stock: 166
Further delivery:
CW 16/2024

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
