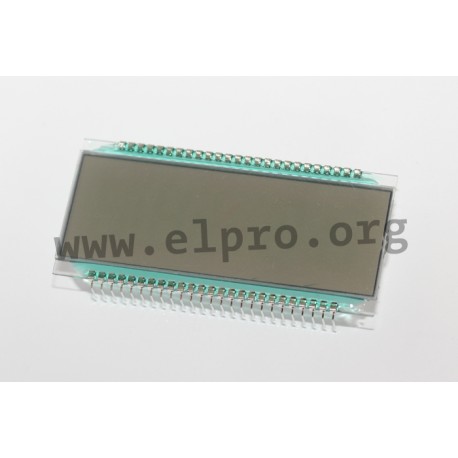

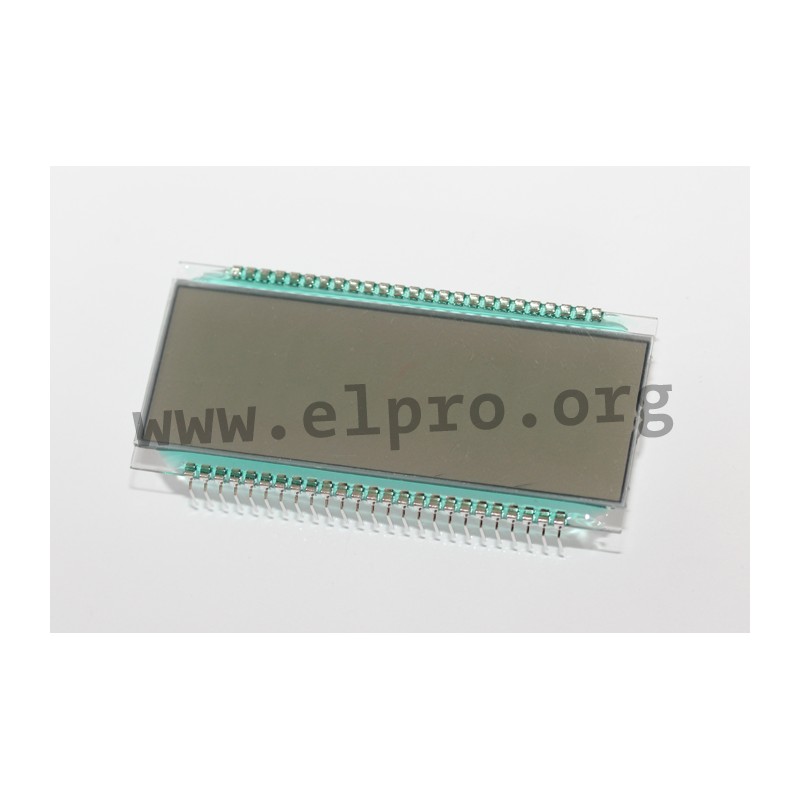

DE 130-TS-20/7.5

7-segment LCDs

  • 7-segment LCDs with a driving frequency of 30 to 100Hz
  • maximal power consumption: 2µA/cm²
  • maximal response time: 450ms
  • operating temperature: -20 to +70°C resp. -40 to +90°C

DE 130-TS-20/7.5

37970 DE 130-TS-20/7.5 DE130TS-20/7,5 DE130TS-20/7,5 7-segment LCDs. 7-segment LCDs with a driving frequency of 30 to 100Hz maximal power consumption: 2µA/cm² maximal response time: 450ms operating temperature: -20 to +70°C resp. -40 to +90°C

Specifications

manufacturer
Manufacturer's name DE130TS-20/7,5
Driving method static
Glass size 81x38
Digit height 17,8
Number of digits 5
Data Sheet

Unit price

6,19 €

Stock: 40
Further delivery:
CW 16/2024
