GBU 801

LiteOn flat rectifier series GBU8_

  • bridge rectifiers
  • glass passivated
  • 5/5mm pin spacing
  • in an In-Line housing with an elongated
  • comply with UL94V-0
  • forward current: 8A

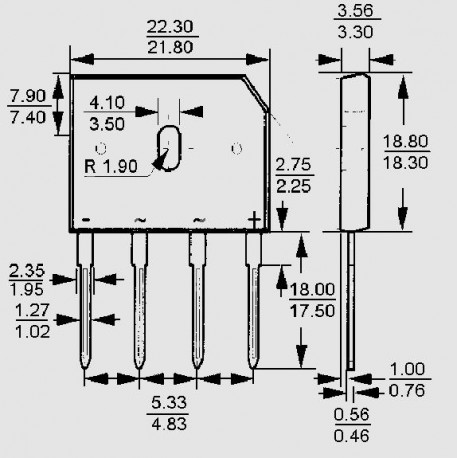

dimensions

GBU 801

25796 GBU 801 GBU 801 LiteOn flat rectifier series GBU8_. bridge rectifiers   glass passivated 5/5mm pin spacing in an In-Line housing with an elongated comply with UL94V-0 forward current: 8A

Discontinued items. Only remainder of stock available.

Specifications

Case In-Line
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 1
(Max.) average forward (rectified) current [A] 8
Reverse current [µA] 5
(Max.) RMS voltage [V] 70
Data Sheet

Unit price

0,50 €

Stock: 8
