HD 1107 KG grün

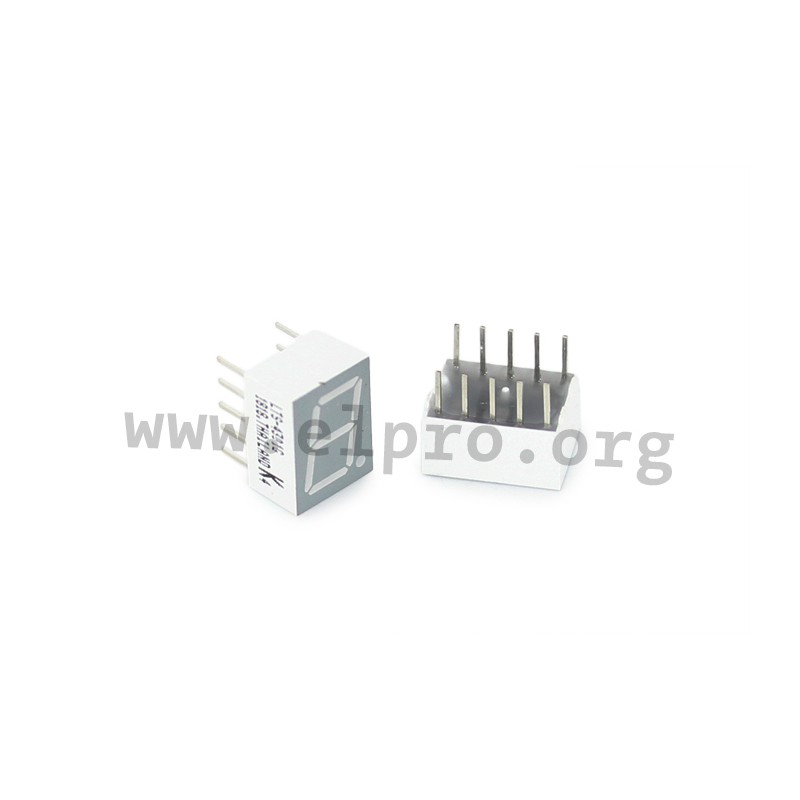

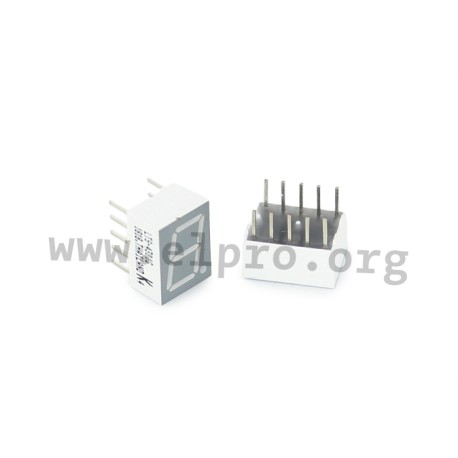

LiteOn LED display series LTS4301 and LTS4801

  • 7-segment LED displays
  • with a digit height of 10mm
  • common anode (LTS 4801_/HD_A_) resp. cathode (LTS 4301_/HD_K_)
  • dimensions: 12,9x9,8mm

HD 1107 KG grün

28986 HD 1107 KG grün LTS4301G-T LTS4301G-T LiteOn LED display series LTS4301 and LTS4801. 7-segment LED displays  with a digit height of 10mm common anode (LTS 4801_/HD_A_) resp. cathode (LTS 4301_/HD_K_) dimensions: 12,9x9,8mm

Specifications

manufacturer
Manufacturer's name LTS4301G-T
Colour green
Digit height [mm] 10mm
Number of digits 1 digit
Forward current [mA] 10
Wavelength [nm] 565
Luminous intensity [µcd] 2,2
Data Sheet

Unit price

0,392 €

Stock: 4718
Further delivery:
CW 02/2025

Minimum order quantity 1 to 2 units or multiples of 36 plus 0 to 2 .
